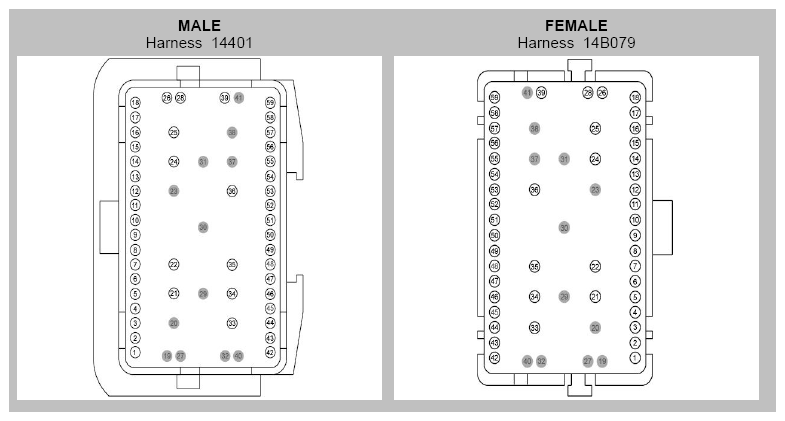

Inline Connector End View (C329)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CDC41 (WH) | 22 | |
| 2 | CET52 (GN) | 22 | |
| 3 | CET53 (BU-OG) | 20 | |
| 4 | CBP42 (GN) | 22 | |
| 5 | CET34 (BN) | 22 | |
| 6 | RE407 (YE-VT) | 22 | |
| 7 | CET42 (GN-VT) | 22 | |
| 8 | CET43 (VT-OG) | 22 | |
| 9 | VME88 (BU-WH) | 22 | |
| 10 | RME88 (GN-BU) | 22 | |
| 11 | DME88 (*) | 20 | |
| 12 | RME89 (VT-RD) | 22 | 14B079 |
| 12 | RME89 (WH-BU) | 22 | 14401 |
| 13 | LME89 (YE-BU) | 22 | |
| 14 | VME45 (BU) | 22 | |
| 15 | RME45 (YE-GN) | 22 | |
| 16 | VME46 (BU-GN) | 22 | |
| 17 | RME46 (WH-GN) | 22 | |
| 18 | DME45 (*) | 20 | |
| 19 | * | * | |
| 20 | * | * | |
| 21 | SBB66 (YE-RD) | 16 | |
| 22 | SBB72 (VT-RD) | 16 | 14401 |
| 22 | SBB72 (VT-RD) | 16 | 14B079 |
| 23 | * | * | |
| 24 | HYA01 (OG-GN) | 18 | |
| 25 | HYA02 (OG-WH) | 18 | |
| 26 | LYA03 (YE-VT) | 22 | |
| 27 | * | * | |
| 28 | RYA03 (BU-BN) | 22 | |
| 29 | * | * | |
| 30 | * | * | |
| 31 | * | * | |
| 32 | * | * | |
| 33 | GD138 (BK-WH) | 12 | |
| 34 | VLN44 (OG) | 22 | |
| 35 | VLN45 (GN) | 22 | |
| 36 | VLN46 (BU) | 22 | |
| 37 | * | * | |
| 38 | * | * | |
| 39 | VLN04 (VT-GY) | 22 | |
| 40 | * | * | |
| 41 | * | * | |
| 42 | VME45 (BU) | 20 | |
| 43 | RME45 (YE-GN) | 20 | |
| 44 | VME46 (BU-GN) | 20 | |
| 45 | * | * | |
| 46 | DME45 (*) | 20 | |
| 47 | RLN44 (BN) | 22 | |
| 48 | * | * | |
| 49 | CBP35 (YE-GY) | 22 | 14B079 |
| 49 | CBP35 (YE-GY) | 22 | 14401 - SVT |
| 50 | CET59 (GY-VT) | 22 | 14B079 |
| 50 | CET59 (GY-VT) | 22 | 14401 - SVT |
| 51 | CMC48 (GY-BN) | 22 | 14B079 |
| 51 | CMC48 (GY-BN) | 22 | 14401 - SVT |
| 52 | CCF01 (BN) | 22 | 14B079 |
| 52 | CCF01 (BN) | 22 | 14401 - SVT |
| 53 | CBP34 (VT-BN) | 22 | 14B079 |
| 53 | CBP34 (VT-BN) | 22 | 14401 - SVT |
| 54 | CCF11 (YE-VT) | 22 | 14B079 |
| 54 | CCF11 (YE-VT) | 22 | 14401 - SVT |
| 55 | CAC03 (WH-VT) | 22 | 14B079 |
| 55 | CAC03 (WH-VT) | 22 | 14401 - SVT |
| 56 | CAC04 (WH-BU) | 22 | 14B079 |
| 56 | CAC04 (WH-BU) | 22 | 14401 - SVT |
| 57 | CBP41 (BU) | 22 | 14B079 |
| 57 | CBP41 (BU) | 22 | 14401 - SVT |
| 58 | CAC01 (GN-BU) | 22 | 14B079 |
| 58 | CAC01 (GN-BU) | 22 | 14401 - SVT |
| 59 | CAC02 (GY-BN) | 22 | 14B079 |
| 59 | CAC02 (GY-BN) | 22 | 14401 - SVT |
