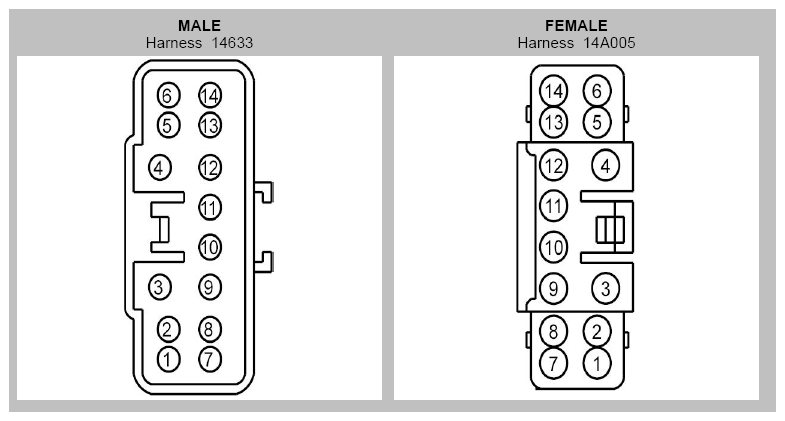

Inline Connector End View (C327)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CHS49 (VT) | 18 | 14633 - Super Crew |
| 1 | CHS49 (VT) | 22 | 14A005 - Super Crew |
| 2 | CPL36 (GN) | 18 | 14633 |
| 2 | CPL36 (GN) | 20 | 14A005 |
| 3 | CPL11 (GY-BN) | 18 | Super Crew |
| 4 | CPL52 (VT-GY) | 18 | Super Crew |
| 5 | CHS47 (VT-GN) | 20 | 14A005 - Super Crew |
| 5 | CHS47 (VT-GY) | 18 | 14633 - Super Crew |
| 5 | RR146 (BU-BN) | 18 | 14633 - Super Cab |
| 5 | RR146 (BU-BN) | 20 | 14A005 - Super Cab |
| 6 | CHS48 (YE) | 18 | 14633 - Super Crew |
| 6 | CHS48 (YE) | 22 | 14A005 - Super Crew |
| 6 | CR146 (GY-VT) | 18 | 14633 - Super Cab |
| 6 | CR146 (GY-VT) | 20 | 14A005 - Super Cab |
| 7 | RME09 (BN-YE) | 18 | |
| 8 | VME09 (WH-GN) | 18 | |
| 9 | CPW14 (VT-WH) | 12 | |
| 10 | CPW15 (YE) | 12 | |
| 11 | CPW16 (BU-OG) | 12 | |
| 12 | CBP32 (GN-VT) | 18 | 14633 - Super Crew |
| 12 | CBP32 (GN-VT) | 20 | 14A005 - Super Crew |
| 13 | CHS46 (YE-GN) | 18 | 14633 - Super Crew |
| 13 | CHS46 (YE-GN) | 22 | 14A005 - Super Crew |
| 14 | GD134 (BK-VT) | 18 | 14633 |
| 14 | GD134 (BK-VT) | 20 | 14A005 |
