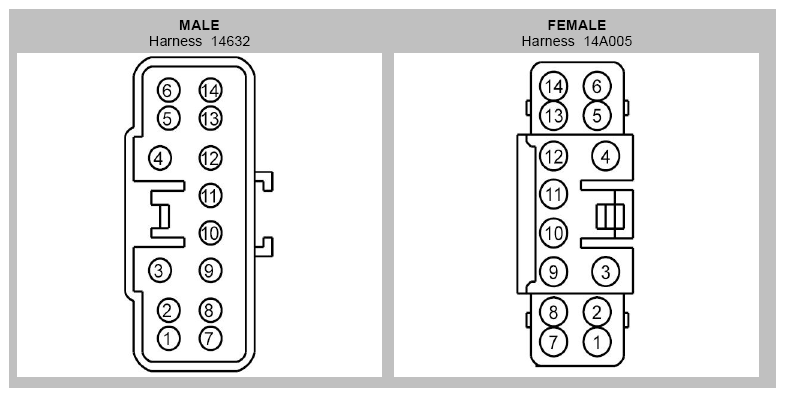

Inline Connector End View (C316)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CHS53 (WH-BN) | 18 | 14632 - Super Crew |
| 1 | CHS53 (WH-BN) | 22 | 14A005 - Super Crew |
| 1 | VR210 (BU-BN) | 18 | 14632 - Super Cab |
| 1 | VR210 (BU-BN) | 20 | 14A005 - Super Cab |
| 2 | CPL39 (YE) | 18 | 14632 |
| 2 | CPL39 (YE) | 20 | 14A005 |
| 3 | CPL11 (GY-BN) | 18 | Super Crew |
| 3 | GD174 (BK-WH) | 18 | 14632 - Super Cab |
| 3 | GD174 (BK-WH) | 20 | 14A005 - Super Cab |
| 4 | CPL52 (VT-GY) | 18 | Super Crew |
| 4 | LR142 (YE-BU) | 18 | 14632 - Super Cab |
| 4 | LR142 (YE-BU) | 20 | 14A005 - Super Cab |
| 5 | CHS51 (YE-GY) | 18 | 14632 - Super Crew |
| 5 | CHS51 (YE-GY) | 22 | 14A005 - Super Crew |
| 5 | RR147 (YE-VT) | 18 | 14632 - Super Cab |
| 5 | RR147 (YE-VT) | 20 | 14A005 - Super Cab |
| 6 | CHS52 (BU) | 18 | 14632 - Super Crew |
| 6 | CHS52 (BU) | 22 | 14A005 - Super Crew |
| 6 | CR147 (GN-OG) | 18 | 14632 - Super Cab |
| 6 | CR147 (GN-OG) | 20 | 14A005 - Super Cab |
| 7 | RME12 (BN-BU) | 18 | |
| 8 | VME12 (BN-WH) | 18 | |
| 9 | CPW14 (VT-WH) | 12 | |
| 10 | CPW17 (BN-GN) | 12 | |
| 11 | CPW18 (GY-VT) | 12 | |
| 12 | CBP32 (GN-VT) | 20 | 14A005 - Super Crew |
| 12 | VLN04 (VT-GY) | 18 | 14632 - Super Crew |
| 13 | CHS50 (BU-GY) | 18 | 14632 - Super Crew |
| 13 | CHS50 (BU-GY) | 22 | 14A005 - Super Crew |
| 14 | GD139 (BK-YE) | 18 | 14632 |
| 14 | GD139 (BK-YE) | 20 | 14A005 |
