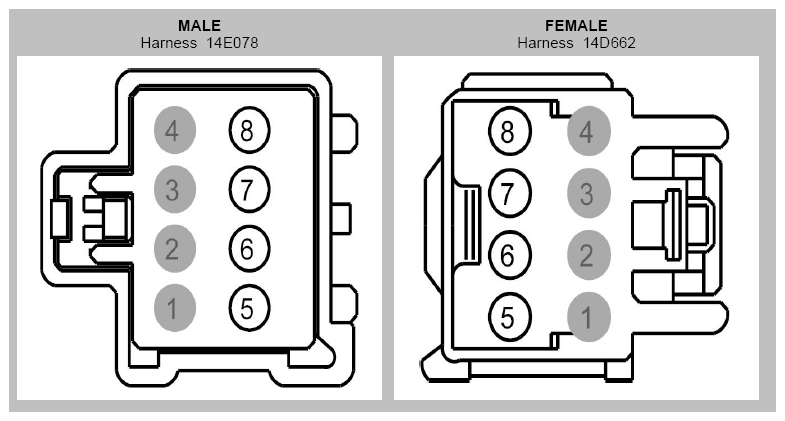

Inline Connector End View (C3137)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | * | * | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | VLN44 (OG) | 22 | 14E078 |
| 5 | VLN44 (OG) | 22 | |
| 6 | VLN45 (GN) | 22 | 14E078 |
| 6 | VLN45 (GN) | 22 | |
| 7 | VLN46 (BU) | 22 | 14E078 |
| 7 | VLN46 (BU) | 22 | |
| 8 | RLN44 (BN) | 22 | 14E078 |
| 8 | RLN44 (BN) | 22 |

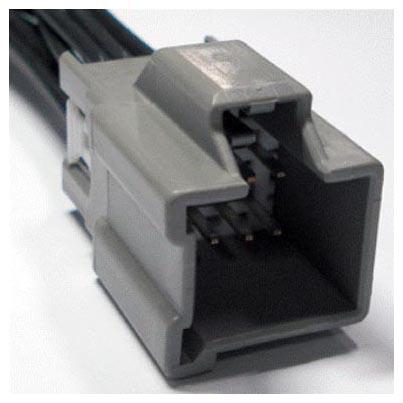

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1034 | Service Part Number: 3U2Z-14S411-ZTB Gauge: 14 Pin material: Tin Cavities: 8 Vehicle Uses:
|
