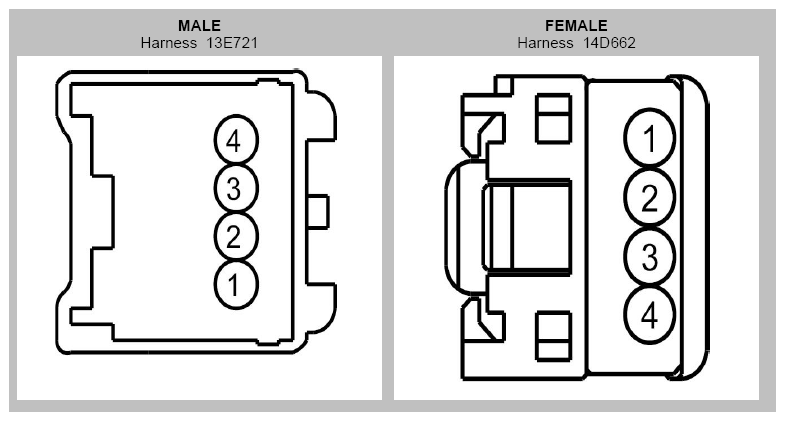

Inline Connector End View (C3134)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CLN48 (YE-OG) |
22 |
|
| 2 |
CLN49 (YE-GN) |
22 |
|
| 3 |
CLN50 (YE-BU) |
22 |
|
| 4 |
RLN44 (BN) |
22 |
|

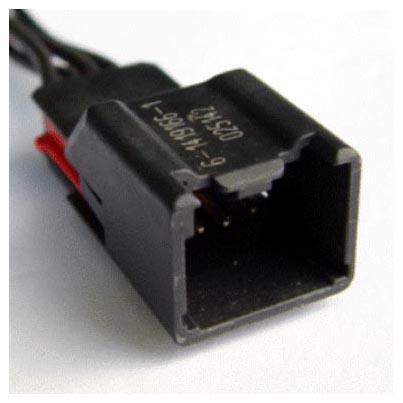

| Available Pigtail Kits |
|
| Pigtail Kit Part Number WPT-394
|
Service Part Number: 3U2Z-14S411-KNA
Gauge: 18
Pin material: Tin
Cavities: 4
Vehicle Uses:
- Element - Heated Seat
- Lamp - License
|
