Inline Connector End View (C3133)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

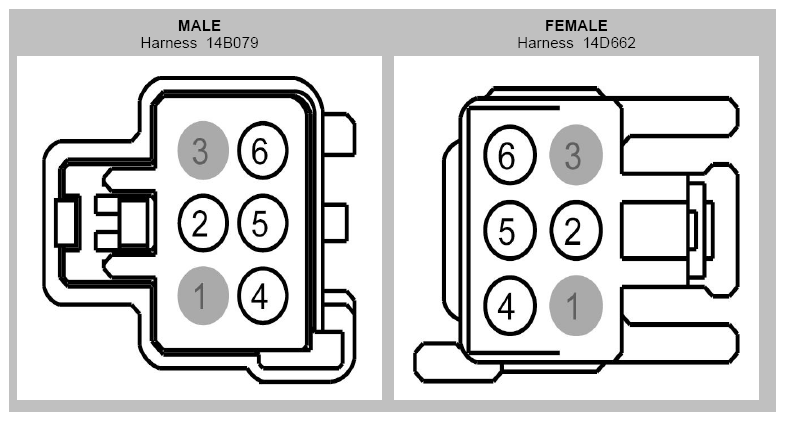

Fig 1: Inline Connector End View (C3133)

G08753874

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	VLN45 (GN)	22
3	*	*
4	VLN46 (BU)	22
5	RLN44 (BN)	22
6	VLN44 (OG)	22

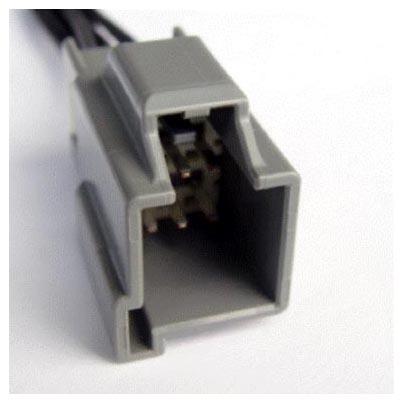

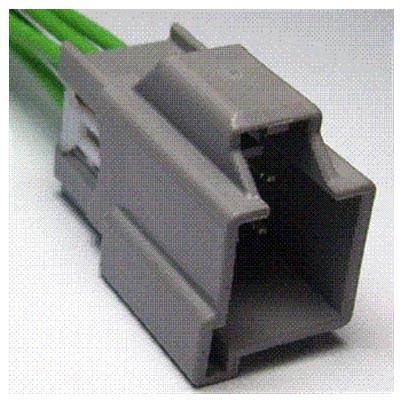

Available Pigtail Kits
Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses: Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses: Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
