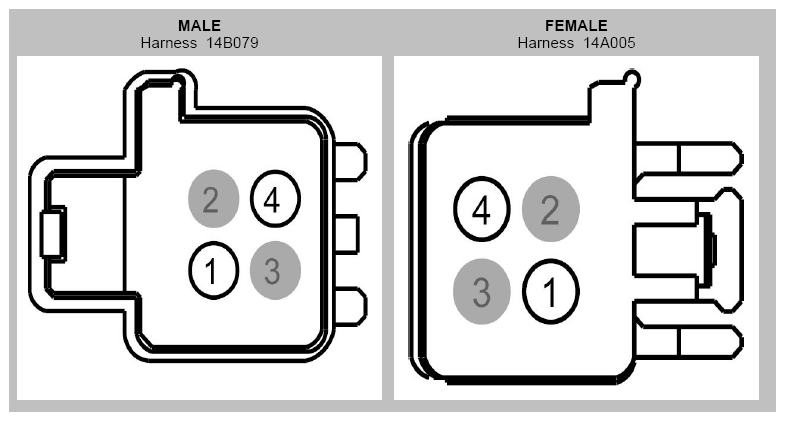

Inline Connector End View (C313)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
GD139 (BK-YE) |
16 |
|
| 2 |
* |
* |
|
| 3 |
* |
* |
|
| 4 |
SBB72 (VT-RD) |
16 |
|

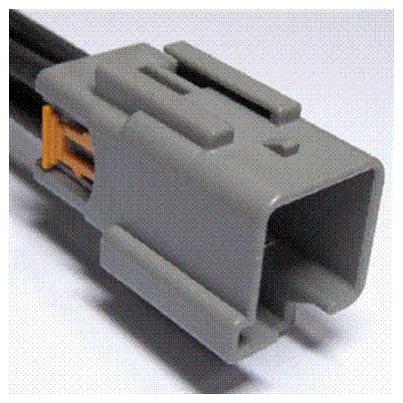

| Available Pigtail Kits |
|
| Pigtail Kit Part Number WPT-1143
|
Service Part Number: AU2Z-14S411-BPA
Gauge: 10
Pin material: Tin
Cavities: 4
Vehicle Uses:
|
