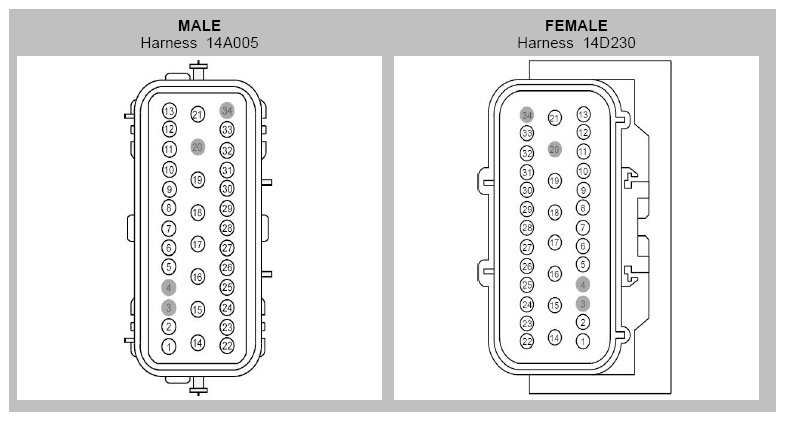

Inline Connector End View (C312)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CR106 (VT-GY) | 20 | 14A005 |
| 1 | CR106 (VT-GY) | 20 | 14D230 |
| 2 | RR106 (YE-OG) | 20 | 14A005 |
| 2 | RR106 (YE-OG) | 20 | 14D230 |
| 3 | * | * | 14A005 |
| 3 | CR122 (WH-OG) | 20 | 14D230 |
| 4 | * | * | 14A005 |
| 4 | RR122 (BN) | 20 | 14D230 |
| 5 | GD174 (BK-WH) | 18 | 14A005 |
| 5 | GD174 (BK-WH) | 20 | 14A005 - Super Cab |
| 5 | GD901 (BK) | 20 | 14D230 - without power seats |
| 5 | GD901 (BK) | 22 | 14D230 - with power seats |
| 6 | VDB06 (GY-OG) | 20 | 14A005 - heated/cooled seats |
| 6 | VDB06 (GY-OG) | 22 | 14D230 - with power seats |
| 7 | VDB07 (VT-OG) | 20 | 14A005 - heated/cooled seats |
| 7 | VDB07 (VT-OG) | 22 | 14D230 - with power seats |
| 8 | VR210 (BU-BN) | 20 | 14A005 - Super Cab |
| 8 | VR210 (BU-BN) | 20 | 14D230 - without power seats |
| 8 | VR210 (BU-BN) | 22 | 14D230 - with power seats |
| 9 | LR142 (YE-BU) | 20 | 14A005 - Super Cab |
| 9 | LR142 (YE-BU) | 20 | 14D230 - without power seats |
| 9 | LR142 (YE-BU) | 22 | 14D230 - with power seats |
| 10 | CR203 (GY-VT) | 20 | 14A005 |
| 10 | CR203 (GY-VT) | 20 | 14D230 |
| 11 | VDB04 (WH-BU) | 20 | 14A005 |
| 11 | VDB04 (WH-BU) | 20 | 14D230 - without power seats |
| 11 | VDB04 (WH-BU) | 22 | 14D230 - with power seats |
| 12 | VDB05 (WH) | 20 | 14A005 |
| 12 | VDB05 (WH) | 20 | 14D230 - without power seats |
| 12 | VDB05 (WH) | 22 | 14D230 - with power seats |
| 13 | CBP36 (BU-BN) | 20 | 14A005 |
| 13 | CBX02 (BN-RD) | 20 | 14D230 - without power seats |
| 13 | CBX02 (BN-RD) | 22 | 14D230 - with power seats |
| 14 | CHS02 (YE-BU) | 14 | 14D230 |
| 14 | CHS02 (YE-BU) | 16 | 14A005 - Super Cab, Super Crew |
| 15 | CBX01 (GN-RD) | 14 | 14D230 |
| 15 | SBB69 (GY-RD) | 10 | 14A005 - Super Cab, Super Crew |
| 16 | CBX05 (VT-RD) | 14 | 14D230 |
| 16 | SBB14 (BN-RD) | 14 | 14A005 - heated/cooled seats |
| 17 | CHS01 (GY-VT) | 14 | 14D230 |
| 17 | CHS01 (GY-VT) | 16 | 14A005 - heated/cooled seats |
| 18 | RHS02 (BU-OG) | 14 | 14D230 |
| 18 | RHS02 (BU-OG) | 16 | 14A005 - heated/cooled seats |
| 19 | RHS01 (WH-VT) | 14 | 14D230 |
| 19 | RHS01 (WH-VT) | 16 | 14A005 - heated/cooled seats |
| 20 | * | * | |
| 21 | GD139 (BK-YE) | 12 | 14A005 |
| 21 | GD903 (BK-WH) | 14 | 14D230 |
| 22 | CHS30 (GY-YE) | 20 | 14A005 - heated seats |
| 22 | CHS30 (GY-YE) | 22 | 14D230 |
| 23 | CBP33 (WH-BN) | 20 | 14A005 - heated seats |
| 23 | SBX06 (GY-RD) | 20 | 14D230 |
| 24 | CHS14 (GN) | 20 | 14A005 - heated seats |
| 24 | CHS14 (GN) | 22 | 14D230 |
| 24 | VHS35 (VT-OG) | 20 | 14A005 - heated/cooled seats |
| 25 | CHS29 (WH-BU) | 20 | 14A005 - heated seats |
| 25 | CHS29 (WH-BU) | 22 | 14D230 |
| 25 | RHS15 (GY-BN) | 20 | 14A005 - heated/cooled seats |
| 26 | CHS04 (YE-GY) | 20 | 14A005 - heated seats |
| 26 | CHS04 (YE-GY) | 22 | 14D230 |
| 27 | CHS13 (VT-BN) | 20 | 14A005 - heated seats |
| 27 | CHS13 (VT-BN) | 22 | 14D230 |
| 28 | VHS26 (VT) | 20 | 14A005 |
| 28 | VHS26 (VT) | 22 | 14D230 |
| 29 | RHS05 (YE-VT) | 20 | 14A005 |
| 29 | RHS05 (YE-VT) | 22 | 14D230 |
| 30 | CHS09 (GY) | 20 | 14A005 - heated seats |
| 30 | CHS09 (GY) | 22 | 14D230 |
| 30 | VHS16 (BU-GN) | 20 | 14A005 - heated/cooled seats |
| 31 | CHS03 (GN-BN) | 18 | 14D230 |
| 31 | CHS03 (GN-BN) | 20 | 14A005 - heated/cooled seats |
| 32 | VHS18 (BN-GN) | 20 | 14A005 - heated/cooled seats |
| 32 | VHS18 (BN-GN) | 22 | 14D230 |
| 33 | RHS03 (GY-OG) | 18 | 14A005 - heated/cooled seats |
| 33 | RHS03 (GY-OG) | 18 | 14D230 |
| 34 | * | * | 14A005 |
| 34 | VR216 (GN-OG) | 20 | 14D230 |
