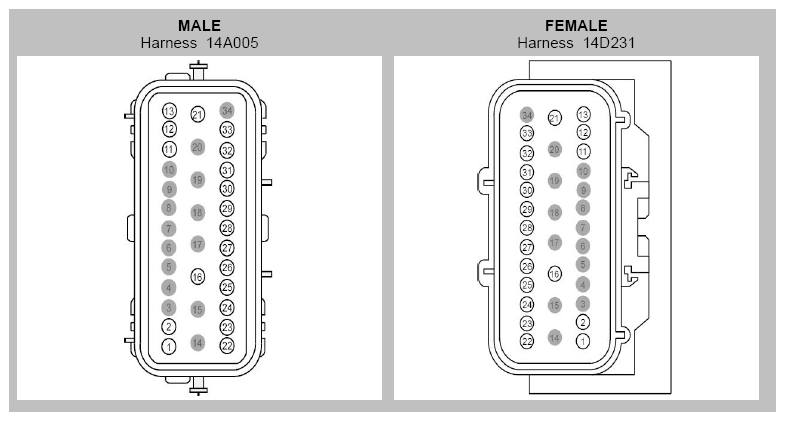

Inline Connector End View (C311)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CR105 (GN-BU) | 20 | 14A005 |
| 1 | CR105 (GN-BU) | 20 | 14D231 |
| 2 | RR105 (GY-YE) | 20 | 14A005 |
| 2 | RR105 (GY-YE) | 20 | 14D231 |
| 3 | * | * | 14A005 |
| 3 | CR120 (BU-OG) | 20 | 14D231 |
| 4 | * | * | 14A005 |
| 4 | RR120 (BN-GN) | 20 | 14D231 |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | CR201 (GN-BU) | 20 | 14A005 |
| 11 | CR201 (GN-BU) | 20 | 14D231 |
| 12 | GD174 (BK-WH) | 18 | 14A005 |
| 12 | RR137 (BU-GY) | 20 | 14D231 |
| 12 | RR137 (BU-GY) | 22 | 14D231 - heated/cooled seats |
| 13 | VR215 (YE-VT) | 20 | 14A005 |
| 13 | VR215 (YE-VT) | 20 | 14D231 |
| 14 | * | * | |
| 15 | * | * | |
| 16 | GD134 (BK-VT) | 14 | 14A005 |
| 16 | GD904 (BK-BU) | 14 | 14D231 - heated/cooled seats |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | * | * | |
| 21 | CBX05 (VT-RD) | 14 | 14D231 - heated/cooled seats |
| 21 | SBB74 (YE-RD) | 14 | 14A005 |
| 22 | CHS02 (YE-BU) | 16 | 14A005 |
| 22 | CHS02 (YE-BU) | 16 | 14D231 - heated/cooled seats |
| 23 | VHS26 (VT) | 20 | 14A005 |
| 23 | VHS26 (VT) | 20 | 14D231 |
| 24 | RHS05 (YE-VT) | 20 | 14A005 |
| 24 | RHS05 (YE-VT) | 20 | 14D231 |
| 25 | RHS02 (BU-OG) | 16 | heated/cooled seats |
| 26 | RHS03 (GY-OG) | 16 | 14D231 - heated/cooled seats |
| 26 | RHS03 (GY-OG) | 18 | 14A005 - heated/cooled seats |
| 27 | VHS18 (BN-GN) | 20 | 14A005 - heated/cooled seats |
| 27 | VHS18 (BN-GN) | 20 | 14D231 - heated/cooled seats |
| 28 | RHS15 (GY-BN) | 20 | 14A005 - heated/cooled seats |
| 28 | RHS15 (GY-BN) | 20 | 14D231 - heated/cooled seats |
| 29 | RHS01 (WH-VT) | 16 | heated/cooled seats |
| 30 | VHS16 (BU-GN) | 20 | 14A005 - heated/cooled seats |
| 30 | VHS16 (BU-GN) | 20 | 14D231 - heated/cooled seats |
| 31 | CHS01 (GY-VT) | 16 | heated/cooled seats |
| 32 | CHS03 (GN-BN) | 16 | 14D231 - heated/cooled seats |
| 32 | CHS03 (GN-BN) | 20 | 14A005 - heated/cooled seats |
| 33 | VHS35 (VT-OG) | 20 | 14A005 - heated/cooled seats |
| 33 | VHS35 (VT-OG) | 20 | 14D231 - heated/cooled seats |
| 34 | * | * |
