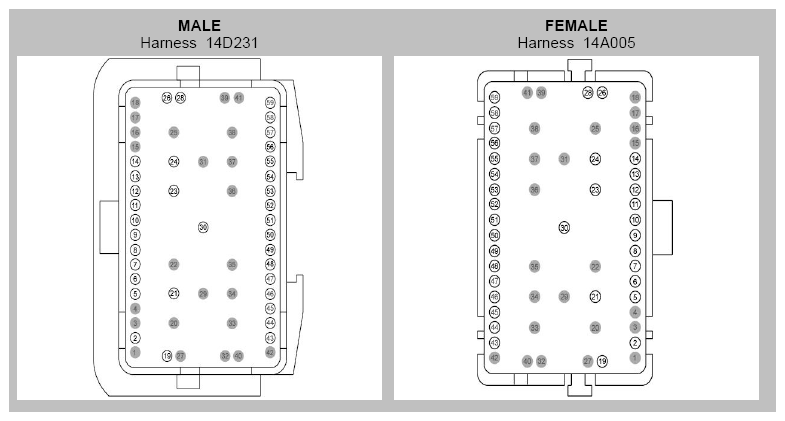

Inline Connector End View (C300)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | * | * | |
| 2 | CPP14 (BN-WH) | 22 | 14D231 |
| 2 | SBP07 (WH-RD) | 20 | 14A005 |
| 3 | * | * | 14A001 |
| 3 | RPP06 (GN) | 22 | 14D231 |
| 4 | * | * | 14A005 |
| 4 | CPP12 (BN-GN) | 22 | 14D231 |
| 5 | VDB06 (GY-OG) | 20 | 14A005 |
| 5 | VDB06 (GY-OG) | 22 | 14D231 |
| 6 | VDB07 (VT-OG) | 20 | 14A005 |
| 6 | VDB07 (VT-OG) | 22 | 14D231 |
| 7 | VPM35 (YE-BU) | 20 | 14A005 |
| 7 | VPM35 (YE-BU) | 22 | 14D231 |
| 8 | VPM36 (BN-YE) | 20 | 14A005 |
| 8 | VPM36 (BN-YE) | 22 | 14D231 |
| 9 | VPM38 (BN-GN) | 20 | 14A005 |
| 9 | VPM38 (BN-GN) | 22 | 14D231 |
| 10 | RPM30 (YE) | 20 | 14A005 |
| 10 | RPM30 (YE) | 22 | 14D231 |
| 11 | CPM28 (BU-BN) | 18 | 14D231 |
| 11 | CPM28 (BU-BN) | 20 | 14A005 |
| 12 | CPM03 (BU-WH) | 20 | 14A005 |
| 12 | CPM26 (WH) | 18 | 14D231 |
| 13 | CPM33 (WH-VT) | 18 | 14D231 |
| 13 | CPM33 (WH-VT) | 20 | 14A005 |
| 14 | LPM30 (GY-VT) | 20 | 14A005 |
| 14 | LPM30 (GY-VT) | 22 | 14D231 |
| 15 | * | * | 14A005 |
| 15 | CPP13 (GY-OG) | 22 | 14D231 |
| 16 | * | * | 14A005 |
| 16 | VPP17 (VT-BN) | 22 | 14D231 |
| 17 | * | * | 14A005 |
| 17 | VPP08 (WH) | 22 | 14D231 |
| 18 | * | * | |
| 19 | CBX03 (BU-RD) | 22 | 14D231 |
| 19 | SBP07 (WH-RD) | 20 | 14A005 |
| 20 | * | * | |
| 21 | CBX04 (WH-RD) | 18 | 14D231 |
| 21 | SBP05 (GY-RD) | 16 | 14A005 |
| 22 | * | * | |
| 23 | CPM04 (VT-BN) | 18 | 14D231 |
| 23 | CPM04 (VT-BN) | 20 | 14A005 |
| 24 | CPM39 (GN-VT) | 18 | 14D231 |
| 24 | CPM39 (GN-VT) | 20 | 14A005 |
| 25 | * | * | |
| 26 | GD134 (BK-VT) | 20 | 14A005 |
| 26 | GD905 (BK-GN) | 22 | 14D231 |
| 27 | * | * | |
| 28 | CPM22 (GY-BN) | 18 | 14D231 |
| 28 | CPM22 (GY-BN) | 20 | 14A005 |
| 29 | * | * | |
| 30 | GD134 (BK-VT) | 14 | 14A005 |
| 30 | GD906 (BK-GY) | 14 | 14D231 |
| 31 | * | * | |
| 32 | * | * | |
| 33 | * | * | 14A005 |
| 33 | CPP01 (WH-OG) | 18 | 14D231 |
| 34 | * | * | 14A005 |
| 34 | CPP03 (GN-VT) | 18 | 14D231 |
| 35 | * | * | 14A005 |
| 35 | CPP04 (GY) | 18 | 14D231 |
| 36 | * | * | 14A005 |
| 36 | CPP23 (VT-GY) | 18 | 14D231 |
| 37 | * | * | 14A005 |
| 37 | CPP22 (GY-BN) | 18 | 14D231 |
| 38 | * | * | 14A005 |
| 38 | CPP02 (BN) | 18 | 14D231 |
| 39 | * | * | |
| 40 | * | * | 14A005 |
| 40 | CPP09 (VT-OG) | 22 | 14D231 |
| 41 | * | * | 14A005 |
| 41 | CPP10 (BN-BU) | 22 | 14D231 |
| 42 | * | * | |
| 43 | * | * | |
| 44 | * | * | 14A005 |
| 44 | CPS15 (VT-WH) | 22 | 14D231 |
| 45 | * | * | 14A005 |
| 45 | CPS16 (YE) | 22 | 14D231 |
| 46 | * | * | |
| 47 | * | * | |
| 48 | CPM31 (YE-GY) | 18 | 14D231 |
| 48 | CPM31 (YE-GY) | 20 | 14A005 |
| 49 | RPM11 (YE-OG) | 20 | 14A005 |
| 49 | RPM11 (YE-OG) | 22 | 14D231 |
| 50 | CPM29 (GN) | 18 | 14D231 |
| 50 | CPM29 (GN) | 20 | 14A005 |
| 51 | CPM16 (BN-BU) | 20 | 14A005 |
| 51 | CPM16 (BN-BU) | 22 | 14D231 |
| 52 | CPM20 (BN-WH) | 20 | 14A005 |
| 52 | CPM20 (BN-WH) | 22 | 14D231 |
| 53 | VPM37 (BU-OG) | 20 | 14A005 |
| 53 | VPM37 (BU-OG) | 22 | 14D231 |
| 54 | CPM17 (BU-GN) | 20 | 14A005 |
| 54 | CPM17 (BU-GN) | 22 | 14D231 |
| 55 | CPM21 (YE-VT) | 20 | 14A005 |
| 55 | CPM21 (YE-VT) | 22 | 14D231 |
| 56 | CPM34 (WH-BN) | 18 | 14D231 |
| 56 | CPM34 (WH-BN) | 20 | 14A005 |
| 57 | * | * | 14A005 |
| 57 | LPP06 (YE-BU) | 22 | 14D231 |
| 58 | * | * | |
| 59 | * | * |
