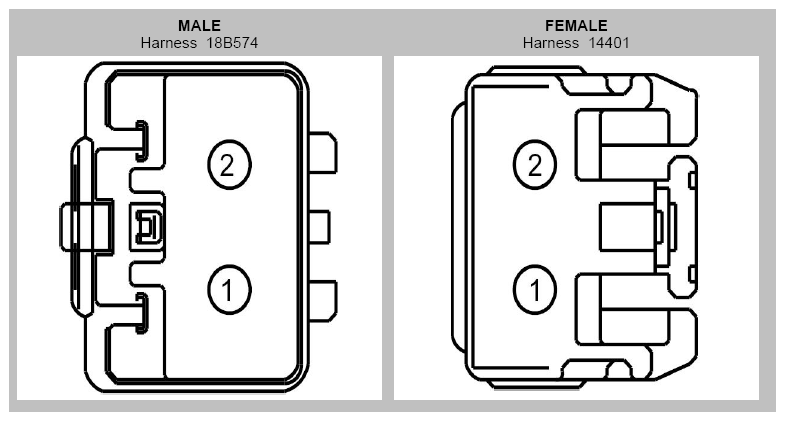

Inline Connector End View (C260)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CH402 (YE-GN) | 10 | |
| 2 | CH426 (YE-OG) | 10 | with manual a/c |
| 2 | VH301 (YE-BU) | 10 | with automatic a/c |

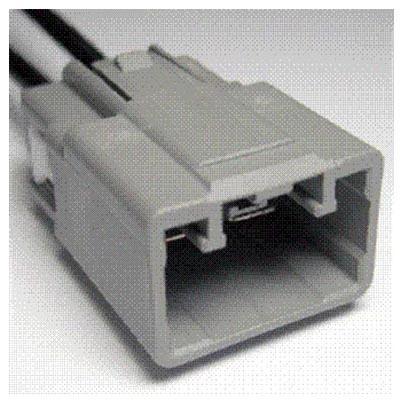

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1190 | Service Part Number: 3U2Z-14S411-EFAB Gauge: 10 Pin material: Tin (greased) Cavities: 2 Vehicle Uses:
|
