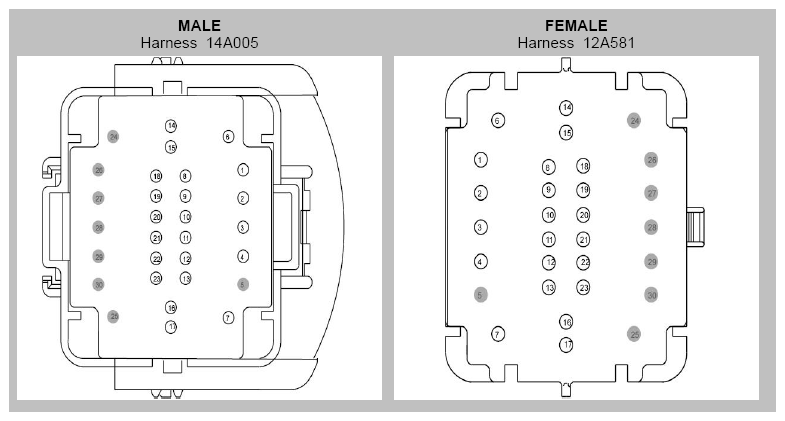

Inline Connector End View (C212)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CBP34 (VT-BN) | 20 | 12A581 |
| 1 | CBP34 (VT-BN) | 22 | 12A581 - with front camera |
| 1 | CBP34 (VT-BN) | 22 | 14A005 |
| 2 | CBP30 (YE-BU) | 18 | 12A581 |
| 2 | CBP30 (YE-BU) | 20 | 14A005 |
| 3 | SBB79 (WH-RD) | 20 | 12A581 - with rain sensor |
| 3 | SBB79 (WH-RD) | 22 | 14A005 - with rain sensor |
| 4 | SBB71 (WH-RD) | 14 | 12A581 - with rear heated seats |
| 4 | SBB71 (WH-RD) | 16 | 14A005 - with rear heated seats |
| 5 | * | * | |
| 6 | SBB74 (YE-RD) | 10 | 12A581 |
| 6 | SBB74 (YE-RD) | 14 | 14A005 |
| 7 | CRD17 (GY) | 18 | |
| 8 | VMP17 (YE-OG) | 20 | 12A581 |
| 8 | VMP17 (YE-OG) | 22 | 14A005 |
| 9 | VMP16 (YE-GY) | 20 | 12A581 |
| 9 | VMP16 (YE-GY) | 22 | 14A005 |
| 10 | VMP15 (YE-GN) | 20 | 12A581 |
| 10 | VMP15 (YE-GN) | 22 | 14A005 |
| 11 | VMP14 (WH-OG) | 20 | 12A581 |
| 11 | VMP14 (WH-OG) | 22 | 14A005 |
| 12 | RMP07 (GN-WH) | 20 | 12A581 |
| 12 | RMP07 (GN-WH) | 22 | 14A005 |
| 13 | VDB05 (WH) | 20 | 12A581 |
| 13 | VDB05 (WH) | 22 | 14A005 |
| 14 | CLS21 (BU-GN) | 20 | 14A005 - online |
| 14 | CLS21 (BU-GN) | 22 | 12A581 |
| 14 | CLS21 (BU-GN) | 22 | 14A005 - offline |
| 15 | CLS28 (BU-WH) | 18 | |
| 16 | SBB48 (VT-RD) | 14 | 12A581 |
| 16 | SBB48 (VT-RD) | 16 | 14A005 |
| 17 | VDN05 (YE-GN) | 22 | 14A005 - with rain sensor |
| 17 | VDN05 (YE-GY) | 20 | 12A581 |
| 18 | VDN03 (GY-VT) | 20 | 12A581 |
| 18 | VDN03 (GY-VT) | 22 | 12A581 - with front camera |
| 18 | VDN03 (GY-VT) | 22 | 14A005 |
| 19 | RR129 (YE-GY) | 20 | |
| 20 | VR213 (VT-GN) | 20 | |
| 21 | RR130 (GN-BU) | 20 | |
| 22 | VR214 (WH-BU) | 20 | |
| 23 | VDB04 (WH-BU) | 20 | 12A581 |
| 23 | VDB04 (WH-BU) | 22 | 14A005 |
| 24 | * | * | |
| 25 | * | * | |
| 26 | * | * | |
| 27 | * | * | |
| 28 | * | * | |
| 29 | * | * | |
| 30 | * | * |
