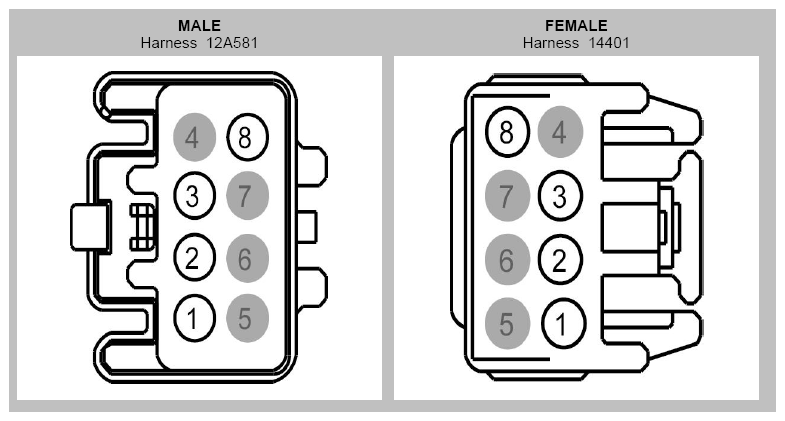

Inline Connector End View (C211)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
SBB17 (RD) |
10 |
12A581 |
| 1 |
SBB17 (RD) |
12 |
14401 |
| 2 |
CAT19 (BU) |
12 |
|
| 3 |
RE407 (YE-VT) |
22 |
|
| 4 |
* |
* |
|
| 5 |
* |
* |
|
| 6 |
* |
* |
|
| 7 |
* |
* |
|
| 8 |
SBB33 (RD) |
10 |
12A581 |
| 8 |
SBB33 (RD) |
12 |
14401 |
