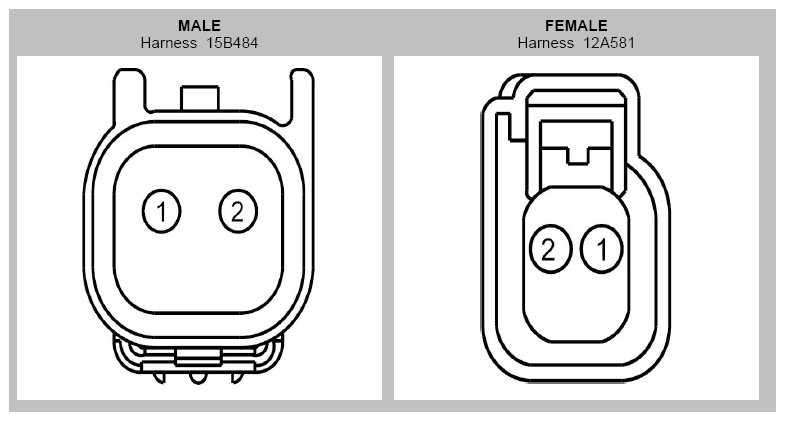

Inline Connector End View (C1595)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CBP30 (YE-BU) | 20 | |
| 2 | GD123 (BK-GY) | 20 |
| Available Pigtail Kits | |
|---|---|

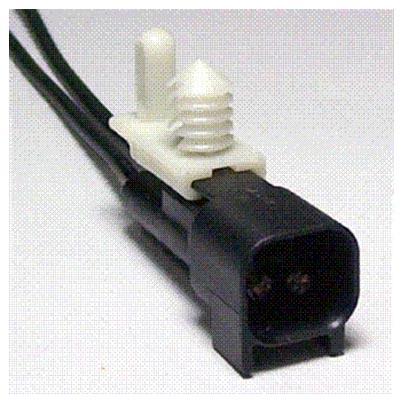

| Pigtail Kit Part Number WPT-1186 | Service Part Number: BU2Z-14S411-AKA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses:
|
