Inline Connector End View (C1586)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

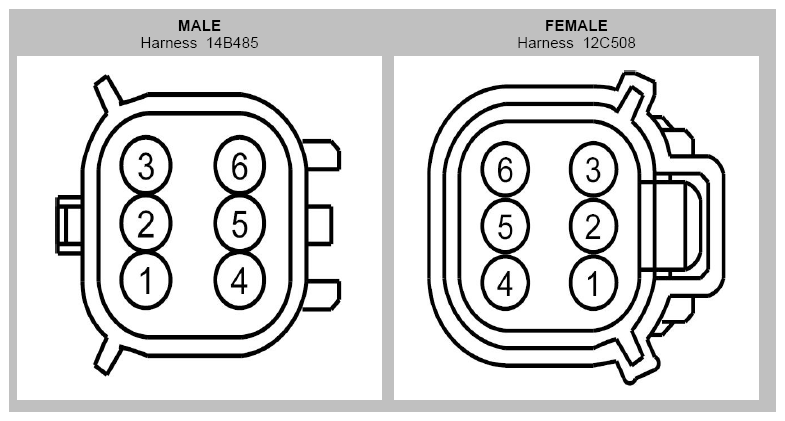

Fig 1: Inline Connector End View (C1586)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge
1	CE205 (GN-BU)	16
2	CE206 (GY-YE)	16
3	CE207 (VT-GY)	16
4	RE205 (YE-BU)	16
5	RE206 (BU-OG)	16
6	RE207 (GN-VT)	16
