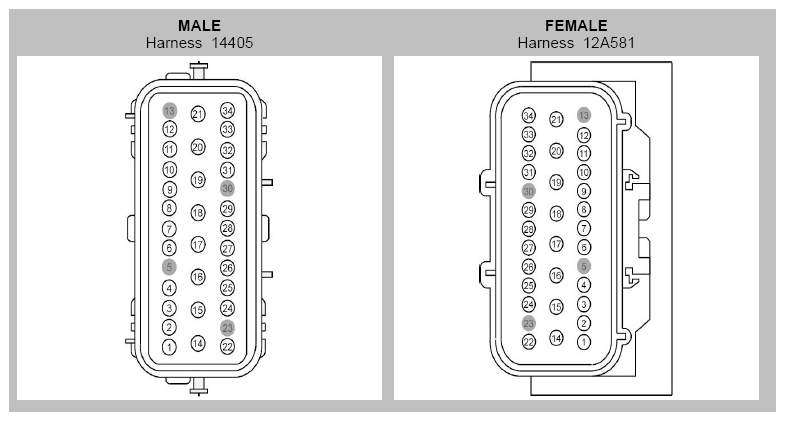

Inline Connector End View (C1581)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | VE922 (VT-GN) | 20 | |
| 2 | VE225 (YE-OG) | 20 | |
| 3 | CR167 (YE-VT) | 20 | |
| 4 | CBP34 (VT-BN) | 20 | |
| 5 | * | * | |
| 6 | RE407 (YE-VT) | 20 | |
| 7 | LE230 (BN-BU) | 20 | |
| 8 | VE518 (BN-WH) | 20 | |
| 9 | VMP17 (YE-OG) | 20 | |
| 10 | VMP16 (YE-GY) | 20 | |
| 11 | VMP15 (YE-GN) | 20 | |
| 12 | VMP14 (WH-OG) | 20 | |
| 13 | * | * | |
| 14 | CAT14 (OG) | 12 | |
| 15 | CE608 (VT-GN) | 10 | |
| 16 | CAT19 (BU) | 12 | |
| 17 | RMC32 (GN-BU) | 16 | 14405 |
| 17 | RMC32 (GN-BU) | 18 | 12A581 |
| 18 | CE114 (GN-BU) | 16 | 14405 |
| 18 | CE114 (GN-BU) | 18 | 12A581 |
| 19 | CCF31 (BN-VT) | 16 | |
| 20 | GD123 (BK-GY) | 16 | |
| 21 | VMC11 (YE-VT) | 16 | 14405 |
| 21 | VMC11 (YE-VT) | 18 | 12A581 |
| 22 | CBB76 (BU-BN) | 16 | 12A581 - 3.5L |
| 22 | CBB76 (BU-BN) | 16 | 14405 - 3.5L |
| 22 | SBB26 (YE-RD) | 18 | 3.7L/5.0L/6.2L |
| 23 | * | * | |
| 24 | RMP07 (GN-WH) | 20 | |
| 25 | CBP40 (YE-GN) | 18 | |
| 26 | VCA06 (WH-OG) | 18 | |
| 27 | RCA20 (BN) | 18 | |
| 28 | VCA04 (BU-OG) | 18 | |
| 29 | RCA18 (BN-GN) | 18 | |
| 30 | * | * | |
| 31 | VMP19 (WH) | 20 | 12A581 - with front park assist |
| 31 | VMP19 (WH-GN) | 20 | 14405 |
| 31 | VMP19 (WH-GN) | 20 | 12A581 - without front park assist |
| 32 | RMP19 (BN) | 20 | 12A581 - with front park assist |
| 32 | RMP19 (BN-VT) | 20 | 14405 |
| 32 | RMP19 (BN-VT) | 20 | 12A581 - without front park assist |
| 33 | DMP19 (BK) | 18 | |
| 34 | GD120 (BK-GN) | 20 |
