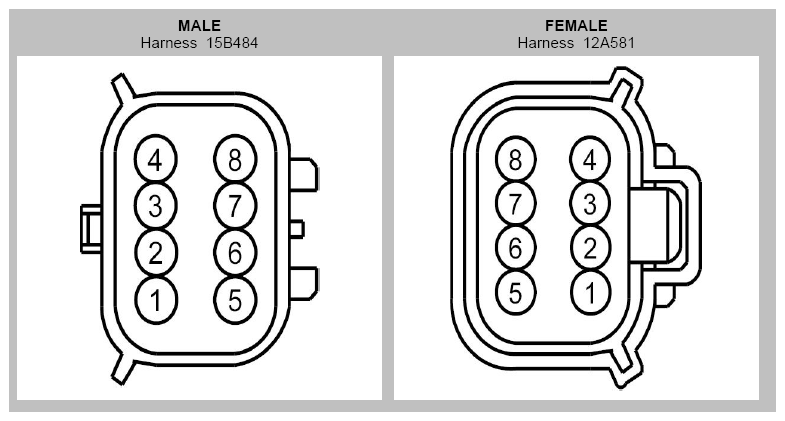

Inline Connector End View (C145)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
GD120 (BK-GN) |
20 |
|
| 2 |
VMP19 (WH-GN) |
20 |
|
| 3 |
RMP19 (BN-VT) |
20 |
|
| 4 |
CBP30 (YE-BU) |
20 |
|
| 5 |
GD123 (BK-GY) |
20 |
|
| 6 |
VDN03 (GY-VT) |
20 |
|
| 7 |
DMP19 (BK) |
18 |
|
| 8 |
CBP34 (VT-BN) |
20 |
|
