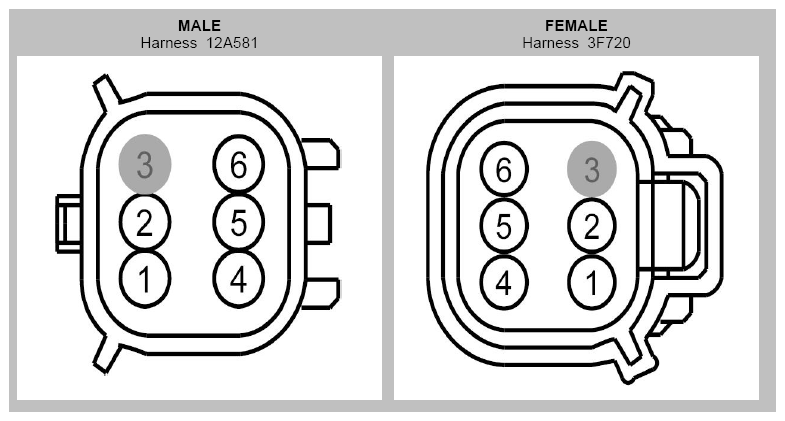

Inline Connector End View (C139)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VDB05 (WH) |
20 |
|
| 2 |
VDB04 (WH-BU) |
20 |
|
| 3 |
* |
* |
|
| 4 |
CBB52 (GN-WH) |
20 |
|
| 5 |
VDB04 (WH/RD) |
20 |
12A581 |
| 5 |
VDB04 (WH-BU) |
20 |
3F720 |
| 6 |
VDB05 (WH) |
20 |
3F720 |
| 6 |
VDB05 (WH/GR) |
20 |
12A581 |
