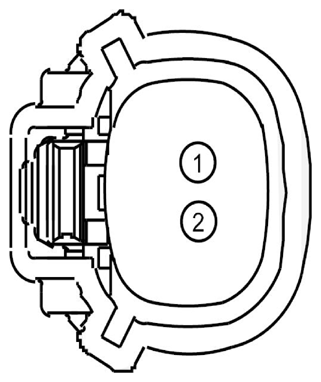

Inline Connector End View (C136)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
CBB77 (WH) |
18 |
FUSE - 77 OR CIRCUIT BREAKER |
|
| 2 |
VE175 (BN-WH) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV_PWM) |
|
