Inline Connector End View (C134)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

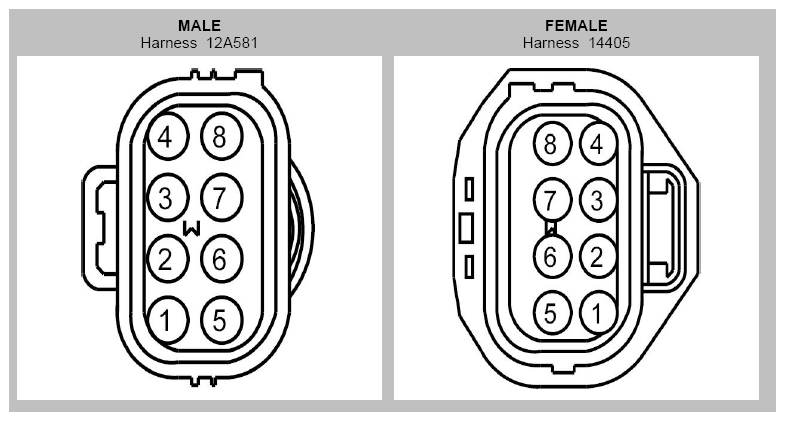

| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | VDN03 (GY-VT) | 20 | 12A581 |
| 1 | VDN03 (GY-VT) | 20 | 14405 |
| 2 | CLS28 (BU-WH) | 18 | 14405 |
| 2 | CLS28 (BU-WH) | 18 | 12A581 |
| 3 | CAT17 (BN) | 16 | |
| 4 | CAT09 (GN) | 16 | |
| 5 | CAT06 (YE) | 16 | |
| 6 | CLS19 (VT-OG) | 16 | 14405 |
| 6 | CLS19 (VT-OG) | 18 | 12A581 |
| 7 | CLS18 (GY-BN) | 16 | 14405 |
| 7 | CLS18 (GY-BN) | 18 | 12A581 |
| 8 | CAT16 (GY-BN) | 16 |

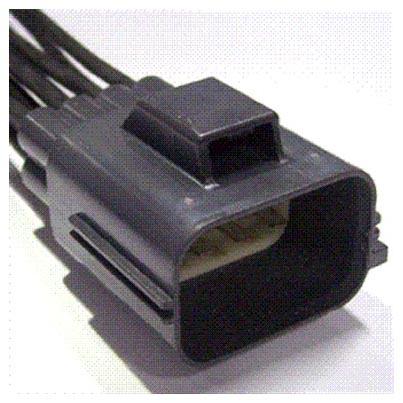

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1084 | Service Part Number: AU2Z-14S411-AEA Gauge: 12 Pin material: Tin (greased) Cavities: 8 Vehicle Uses:
|
