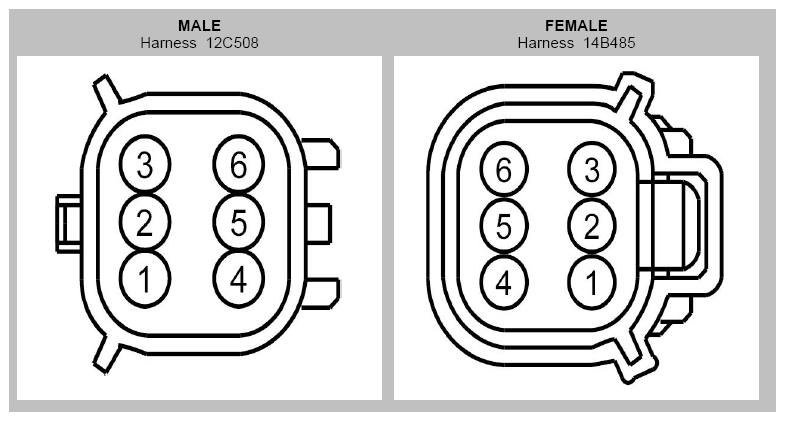

Inline Connector End View (C133)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VE801 (VT-OG) |
18 |
|
| 2 |
VE802 (BN-BU) |
18 |
|
| 3 |
VE712 (BU-GY) |
18 |
|
| 4 |
RE323 (WH-BN) |
18 |
14B485 |
| 4 |
RE323 (WH-BN) |
20 |
12C508 |
| 5 |
RE324 (BN-GN) |
18 |
|
| 6 |
RE405 (GN-WH) |
18 |
|
