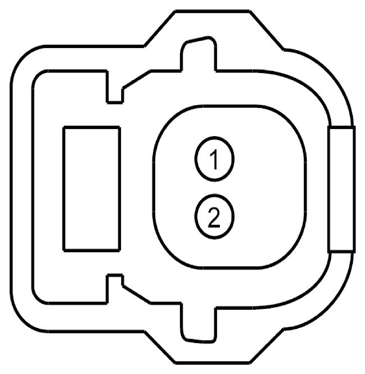

Impact Sensor, Passenger Second Row Connector End View (C3249)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VR220 (VT-OG) | 20 | SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE | |
| 2 | RR134 (BN-BU) | 20 | CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE |
| Available Pigtail Kits | |
|---|---|

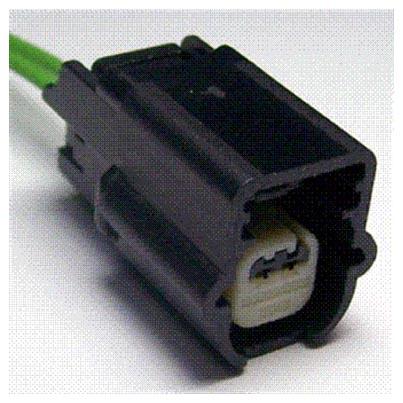

| Pigtail Kit Part Number WPT-1314 | Service Part Number: 8U2Z-14S411-AAC Gauge: 20 Pin material: Silver Cavities: 2 Vehicle Uses
|
| Pigtail Kit Part Number WPT-1216 |

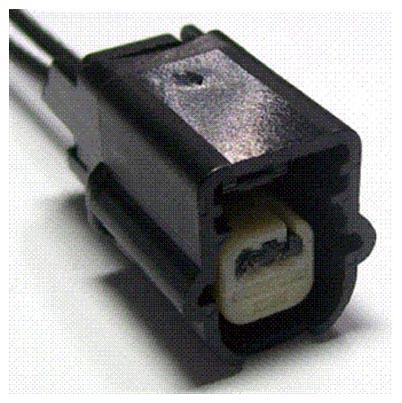

Service Part Number: 8U2Z-14S411-AAB Gauge: 18 Pin material: Silver Cavities: 2 Vehicle Uses
|
| Pigtail Kit Part Number WPT-1090 | Service Part Number: AU2Z-14S411-YA Gauge: 18 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
