Horn Switch Connector End View (C217)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

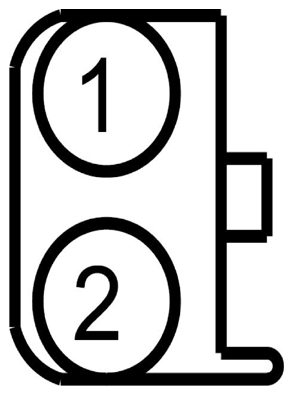

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | RRH02 (*) | * | GROUND - CROSS CAR BEAM # 5TH POINT | |
| 2 | CRH02 (*) | * | SWITCH - HORN |
| Available Pigtail Kits | |
|---|---|

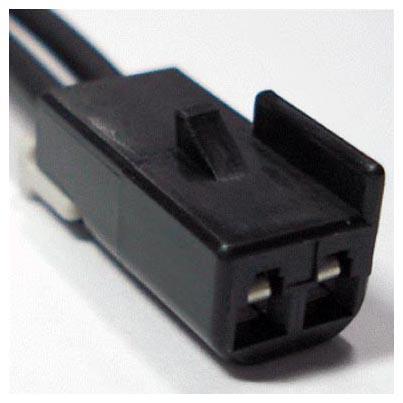

| Pigtail Kit Part Number WPT-233 | Service Part Number: 3U2Z-14S411-CZA Gauge: 18 Pin material: Tin Cavities: 2 Vehicle Uses
|

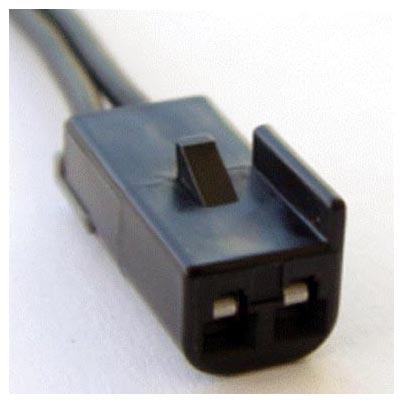

| Pigtail Kit Part Number WPT-967 | Service Part Number: 3U2Z-14S411-CZB Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses
|
