High Mounted STOPLAMP Connector End View (C904)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

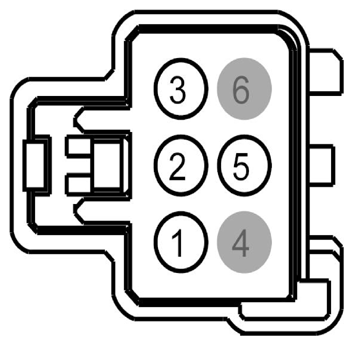

Fig 1: High Mounted Stoplamp Connector End View (C904)

G08753470

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD139 (BK-YE)	20	GROUND - PILLAR A RIGHT # 2ND STUD
2	CLN25 (VT)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)
3	CLS52 (BN)	20	CTRL MOD. - STOP/TURN RIGHT MIDDLE
4	*	*	Not Used
5	CBP30 (YE-BU)	20	FUSE - 30 OR CIRCUIT BREAKER	SVT Raptor
6	*	*	Not Used

Available Pigtail Kits

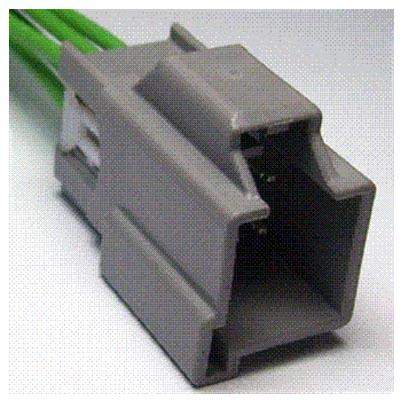

Pigtail Kit Part Number WPT-444	Service Part Number: 3U2Z-14S411-NBA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - Park/Turn/Stop Lamp - Park/Turn/Stop/Reverse - Inline (Male) Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction

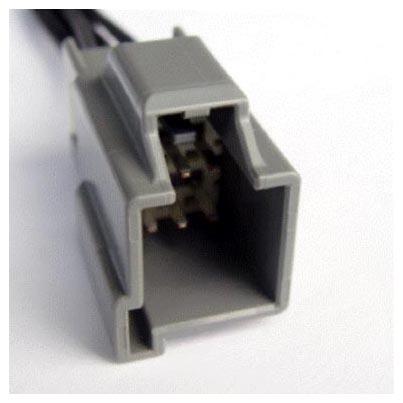

Pigtail Kit Part Number WPT-1299	Service Part Number: 3U2Z-14S411-NBB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Connector - Inline Element - Heated Seat Inverter - DC to AC Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Courtesy - Footwell Lamp - License Lamp - Park/Turn/Stop Lamp - Top Finish Panel Motor - Adjustable Pedal Switch - Gear Shift Select/Neutral Safety Switch - Multifunction
