Heated Seat Switch, Left Rear Seat Connector End View (C731)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

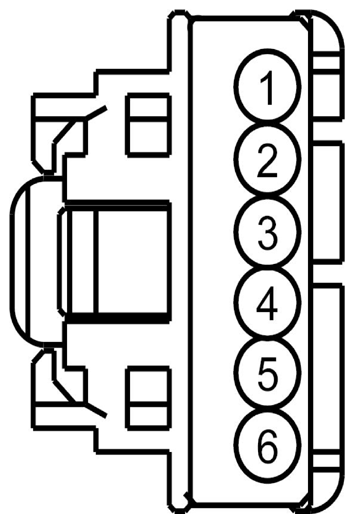

Fig 1: Heated Seat Switch, Left Rear Seat Connector End View (C731)

G08753446

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CHS46 (YE-GN)	22	CTRL MOD. - HOT/COLD SEAT # REAR LEFT SELECT HIGH
2	CBP32 (GN-VT)	20	FUSE - 32 OR CIRCUIT BREAKER
3	CHS48 (YE)	22	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR HIGH
4	CHS49 (VT)	22	CTRL MOD. - HOT/COLD SEAT # REAR LEFT INDICATOR LOW
5	CHS47 (VT-GN)	18	CTRL MOD. - HOT/COLD SEAT # REAR LEFT SELECT LOW
6	GD134 (BK-VT)	20	GROUND - COWL SIDE/PILLAR A LEFT # 2ND POINT (6L2T)

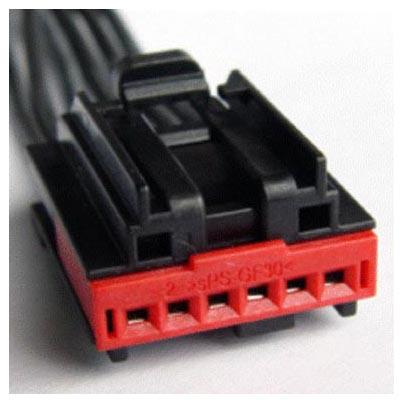

Available Pigtail Kits
Pigtail Kit Part Number WPT-649	Service Part Number: 3U2Z-14S411-BYAA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Heated Seat Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Heated Seat - RH - Rear
Pigtail Kit Part Number WPT-1249	Service Part Number: 3U2Z-14S411-BYAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dome Lamp - Storage Compartment - Cargo Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat Switch - Heater A/C Blower (Rear) Switch - Speed Control
Pigtail Kit Part Number WPT-956	Service Part Number: 3U2Z-14S411-BYAB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Heated Seat - RH - Rear Switch - Heater A/C Blower (Rear)
