Headlamp, Left Connector End View (C1021)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

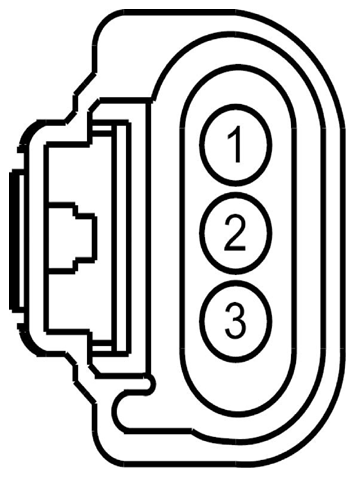

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLF04 (BN-BU) | 20 | CTRL MOD. - BEAM LOW LEFT | |
| 2 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | |
| 3 | CLF02 (GY-BN) | 20 | CTRL MOD. - BEAM HIGH LEFT |
| Available Pigtail Kits | |
|---|---|

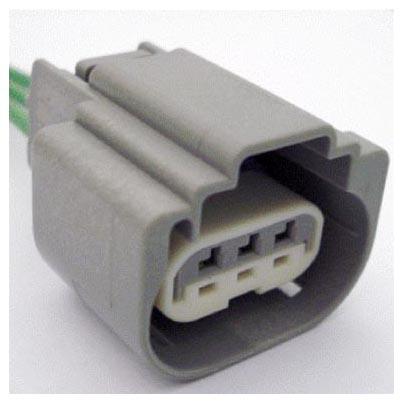

| Pigtail Kit Part Number WPT-943 | Service Part Number: 3U2Z- 14S411-FKAB Gauge: 16 Pin material: Tin Cavities: 3 Vehicle Uses
|

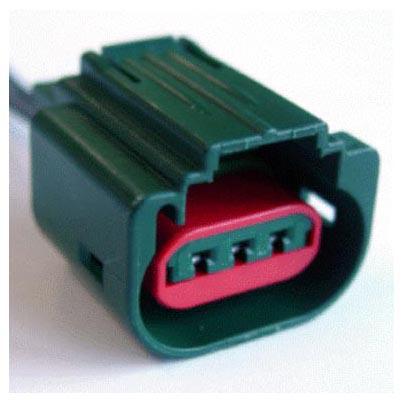

| Pigtail Kit Part Number WPT-1236 | Service Part Number: 3U2Z-14S411-FKAE Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses
|

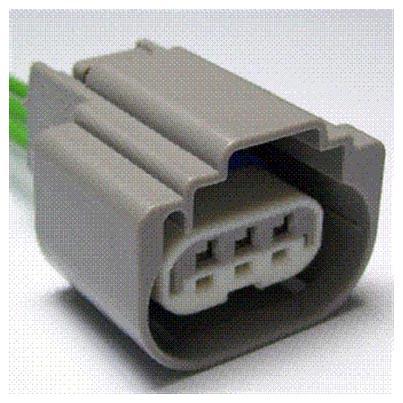

| Pigtail Kit Part Number WPT-793 | Service Part Number: 3U2Z-14S411-FKAA Gauge: 16 Pin material: Tin Cavities: 3 Vehicle Uses
|
