Headlamp Switch Connector End View (C205)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

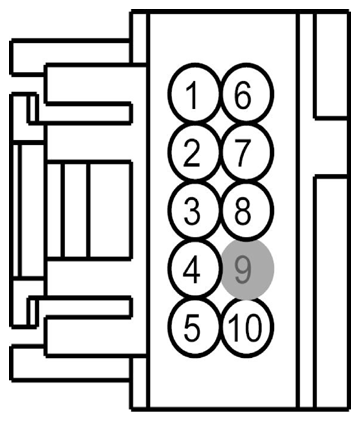

Fig 1: Headlamp Switch Connector End View (C205)

G08753228

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION
2	CLS34 (GY)	22	SWITCH - PARK LAMPS
3	GD133 (BK)	20	GROUND - PILLAR A LEFT
4	CLF19 (VT/GN)	22	SWITCH - AUTOLAMP ON
5	CLF21 (GY-VT)	22	SWITCH - FOG LAMPS FRONT
6	CLF23 (WH-VT)	22	SWITCH - HEADLAMP OFF
7	CLF24 (YE/BU)	22	SWITCH - HEADLAMP ON
8	GD133 (BK)	20	GROUND - PILLAR A LEFT
9	*	*	Not Used
10	CLF-12 (BN-YE)	22	RELAY - FOG LAMPS FRONT

Available Pigtail Kits

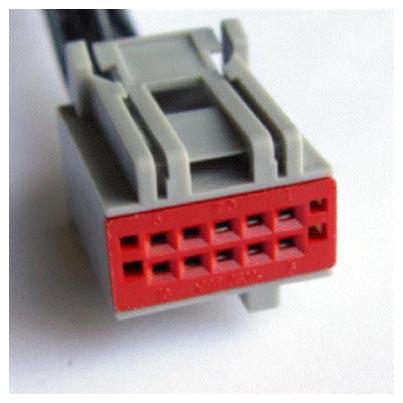

Pigtail Kit Part Number WPT-934	Service Part Number: 3U2Z-14S411-LSB Gauge: 18 Pin material: Silver Cavities: 10 Vehicle Uses Lamp - Headlamp Switch Module - Lighting Control Module - Reverse Park Aid (RPA) Module - Seat Memory Radio Switch - Headlamp Switch - Headlamp/Foglamp Switch - Multifunction Switch - Power Window - Driver Switch - Turn Signal

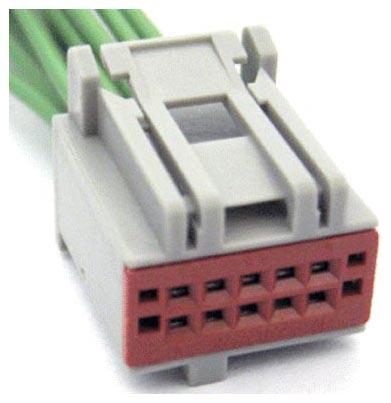

Pigtail Kit Part Number WPT-559	Service Part Number: 3U2Z-14S411-LSA Gauge: 20 Pin material: Tin Cavities: 9 Vehicle Uses Module - Reverse Park Aid (RPA) Module - Seat Memory Switch - Heated Seat - RH - Front Switch - Multifunction Switch - Power Window - Driver Switch - Seat (driver) Switch - Seat (passenger)
