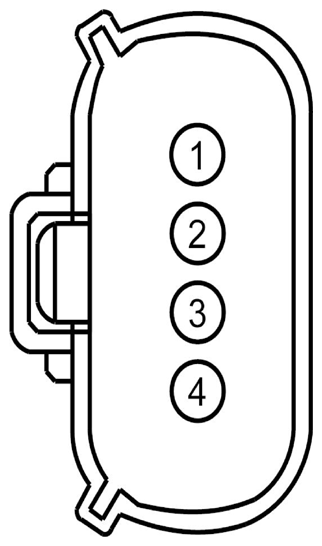

Headlamp Assembly, Right Connector End View (C1285)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLF05 (BU-GN) | 18 | CTRL MOD. - BEAM LOW RIGHT | |
| 2 | SBB16 (VT-RD) | 14 | FUSE - 16 OR CIRCUIT BREAKER | |
| 3 | CLF03 (VT-OG) | 18 | CTRL MOD. - BEAM HIGH RIGHT | |
| 4 | GD123 (BK-GY) | 16 | GROUND - FENDER FRONT RIGHT |

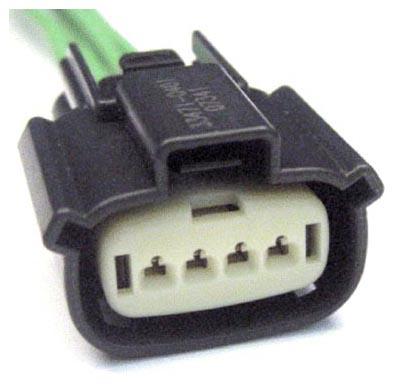

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-925 | Service Part Number: 8U2Z-14S411-TA Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses
|
