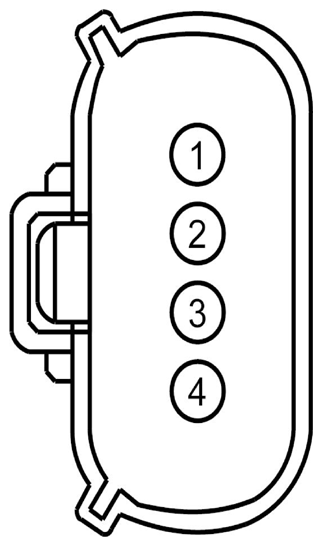

Headlamp Assembly, Left Connector End View (C1284)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLF04 (BN-BU) | 18 | CTRL MOD. - BEAM LOW LEFT | |
| 2 | SBB35 (BU-RD) | 12 | FUSE - 35 OR CIRCUIT BREAKER | |
| 3 | CLF02 (GY-BN) | 18 | CTRL MOD. - BEAM HIGH LEFT | |
| 4 | GD120 (BK-GN) | 16 | GROUND - FENDER FRONT LEFT |

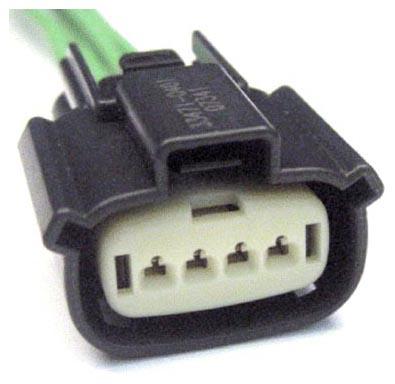

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-925 | Service Part Number: 8U2Z-14S411-TA Gauge: 14 Pin material: Silver Cavities: 4 Vehicle Uses
|
