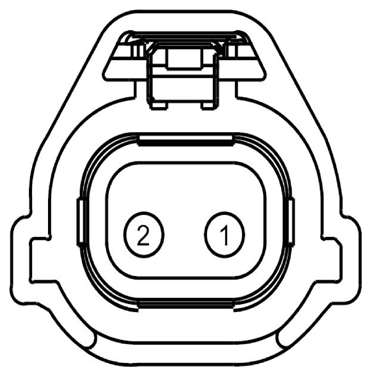

Fuel Injector 4 Connector End View (C1144)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE208 (YE-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4) | |
| 2 | RE208 (BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ4RTN) |
| Available Pigtail Kits | |
|---|---|

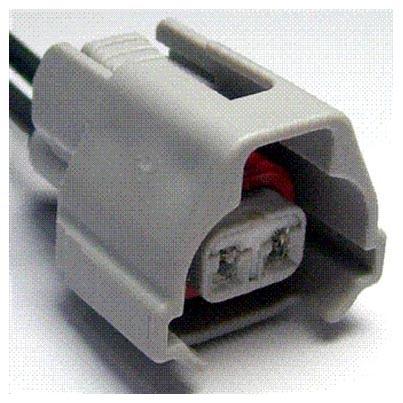

| Pigtail Kit Part Number WPT-1282 | Service Part Number: CU2Z-14S411-XA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
