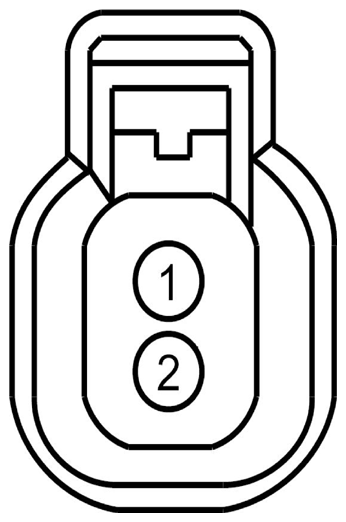

Fuel Injector 3 Connector End View (C183)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE207 (VT-GY) | 20 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3) | 5.0L/6.2L |
| 2 | CBK01 (BU) | 20 | RELAY - FUEL PUMP | 5.0L/6.2L |
| Available Pigtail Kits | |
|---|---|

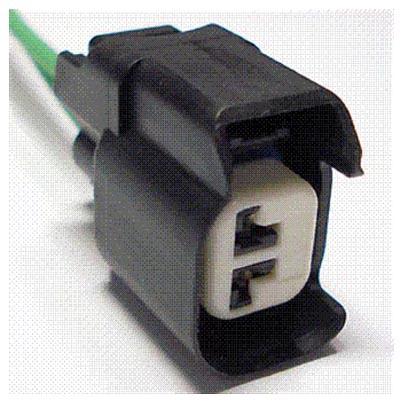

| Pigtail Kit Part Number WPT-1051 | Service Part Number: 5U2Z-14S411-ZB Gauge: 16 Pin material: Silver Cavities: 2 Vehicle Uses
|
