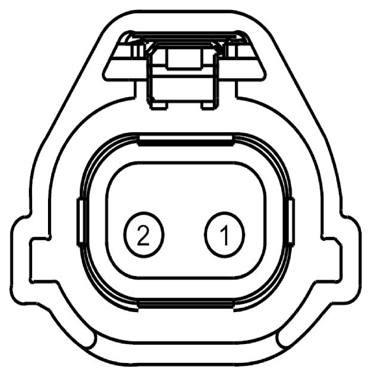

Fuel Injector 3 Connector End View (C1143)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE207 (VT-GY) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3) | |
| 2 | RE207 (GN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ3RTN) |

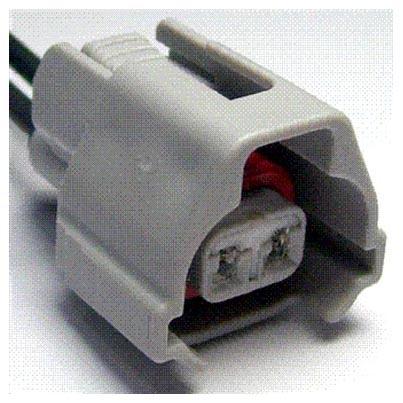

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1282 | Service Part Number: CU2Z-14S411-XA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
