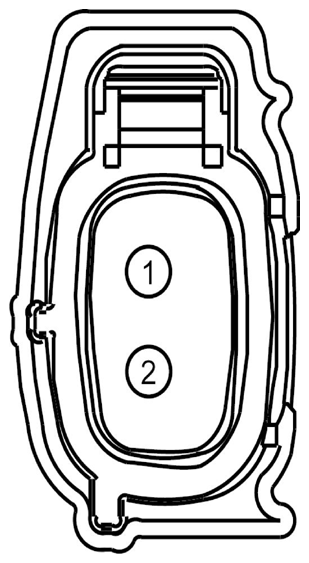

Fuel Injection Pump Connector End View (C1589)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE226 (YE-VT) | 14 | FUEL VOLUME REGULATOR (FVR) | |
| 2 | RE226 (GN-VT) | 14 | FUEL VOLUME REGULATOR RETURN (FVRRTN) |

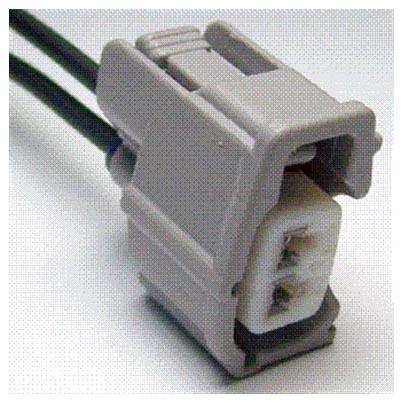

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1277 | Service Part Number: CU2Z-14S411-UA Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
