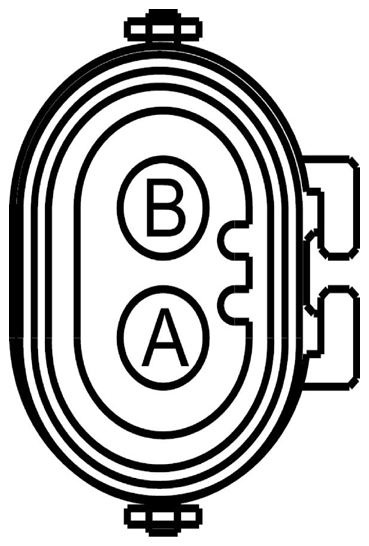

Fog Lamp, Right Connector End View (C162)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| A | GD123 (BK-GY) | 20 | GROUND - FENDER FRONT RIGHT | |
| B | CLF12 (BN-YE) | 20 | RELAY - FOG LAMPS FRONT |
| Available Pigtail Kits | |
|---|---|

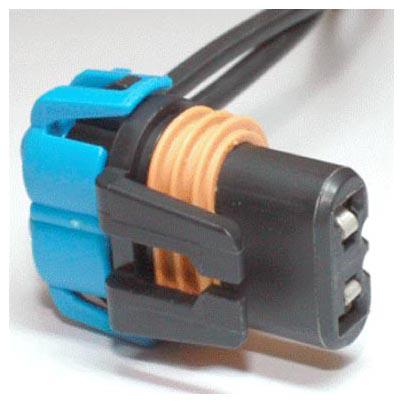

| Pigtail Kit Part Number WPT-107 | Service Part Number: 1U2Z-14S411-FA Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses
|

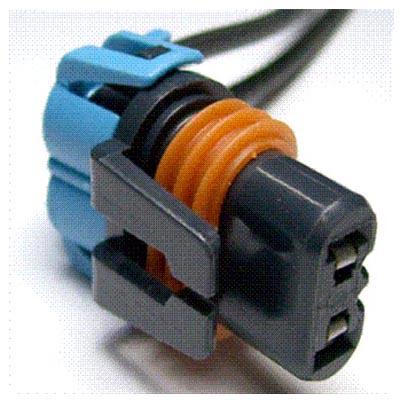

| Pigtail Kit Part Number WPT-1080 | Service Part Number: 1U2Z-14S411-FC Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses
|
