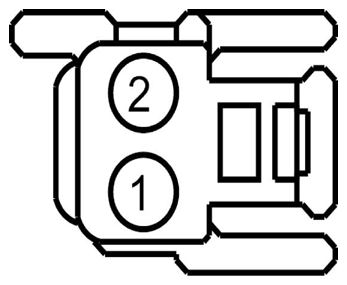

Evaporator Temperature Sensor Connector End View (C296)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VH406 (VT-BN) | 22 | SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) | |
| 2 | RH111 (GY-BU) | 22 | CTRL MOD. - GENERIC VREF RETURN |
| Available Pigtail Kits | |
|---|---|

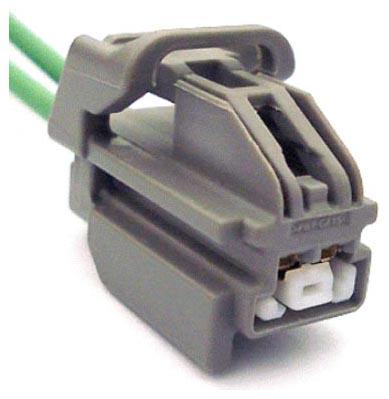

| Pigtail Kit Part Number WPT-965 | Service Part Number: 3U2Z-14S411-AEB Gauge: 14 Pin material: Silver Cavities: 2 Vehicle Uses
|
