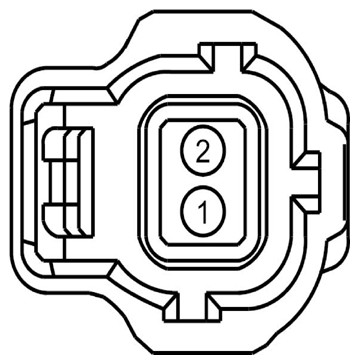

Evaporative Emission (EVAP) Canister Vent Solenoid Connector End View (C450)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB26 (YE-RD) | 18 | FUSE - 26 OR CIRCUIT BREAKER | |
| 1 | CBB76 (BU-BN) | 16 | FUSE - 76 OR CIRCUIT BREAKER | 3.5L |
| 2 | CE114 (GN-BU) | 16 | CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANV) |

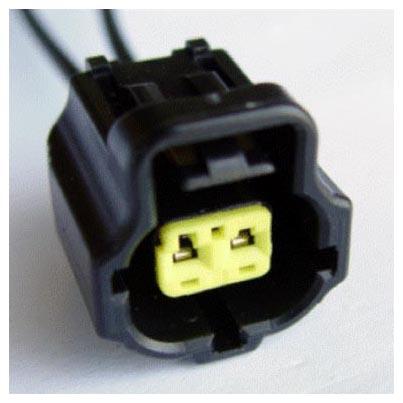

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-322 | Service Part Number: 3U2Z-14S411-JZA Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses
|
