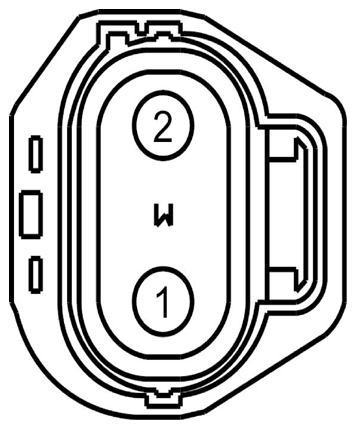

Engine Cooling Fan Motor 1 Connector End View (C1074)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CEC05 (VT-GY) | 10 | RELAY - ENGINE COOLING FAN | |
| 2 | CEC06 (YE-OG) | 10 | RELAY - ENGINE COOLING FAN 2ND |

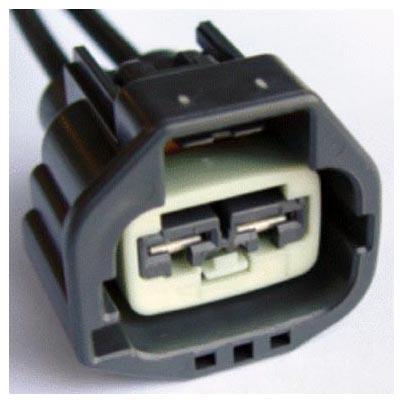

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-778 | Service Part Number: 3U2Z-14S411-EUAA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses
|
