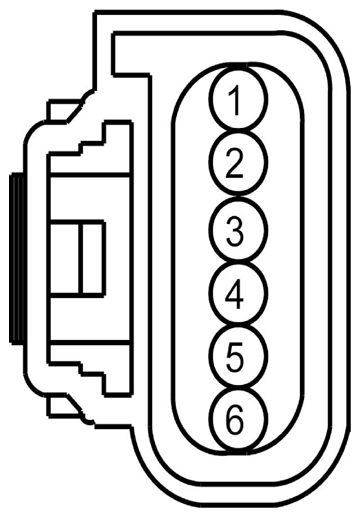

Electronic Throttle Control (Etc) Connector End View (C1513)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE412 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | 3.7L |
| 1 | CE412 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | 3.5L/5.0L/6.2L |
| 2 | CE426 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | 3.7L |
| 2 | CE426 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | 3.5L/5.0L/6.2L |
| 3 | VE818 (BN) | 20 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) | 3.5L/3.7L/6.2L |
| 3 | VE818 (BN) | 18 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) | 5.0L |
| 4 | RE134 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | 3.5L/3.7L/6.2L |
| 4 | RE134 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | 5.0L |
| 5 | LE134 (YE) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | 3.5L/3.7L/6.2L |
| 5 | LE134 (YE) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | 5.0L |
| 6 | VE819 (GN-VT) | 20 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) | 3.5L/3.7L/6.2L |
| 6 | VE819 (GN-VT) | 18 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) | 5.0L |

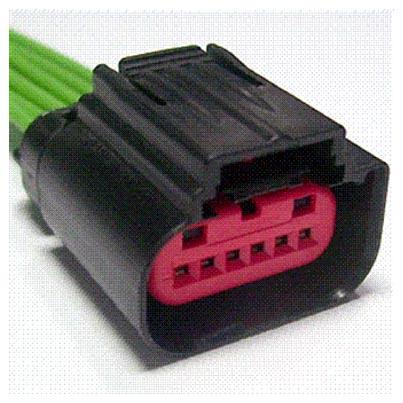

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1063 | Service Part Number: AU2Z-14S411-MA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
