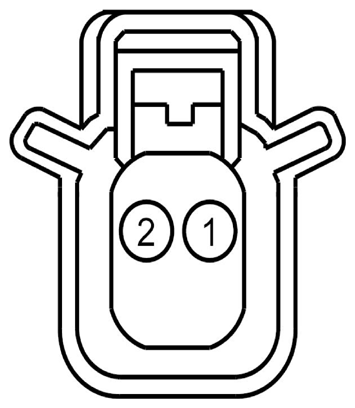

Electronic Locking Differential (Eld) Field Coil Connector End View (C4359)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CCF31 (BN-VT) | 16 | CTRL MOD. - REAR DIFFERENTIAL LOCK | |
| 2 | GD123 (BK-GY) | 16 | GROUND - FENDER FRONT RIGHT |

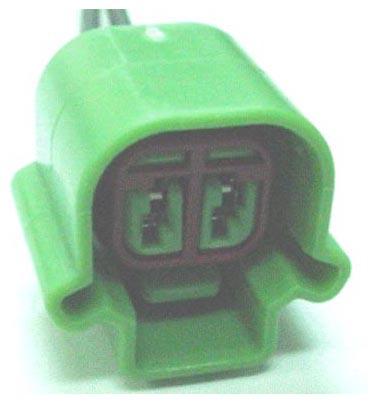

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-829 | Service Part Number: 2U2Z-14S411-BB Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses
|
