Electronic Compressor Bypass Valve Connector End View (C1622)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

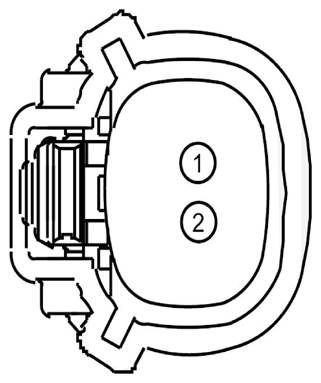

Fig 1: Electronic Compressor Bypass Valve Connector End View (C1622)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB77 (WH)	18	FUSE - 77 OR CIRCUIT BREAKER
2	VE175 (BN-WH)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV_PWM)
