Electronic Compass Connector End View (C909)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP32 (GN-VT) | 20 | FUSE - 32 OR CIRCUIT BREAKER | |
| 2 | GD133 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT (6L2T) | |
| 3 | VDN01 (BU-WH) | 22 | CTRL MOD. - LIN BUS # SPDJB 1 | |
| 4 | * | * | Not Used |

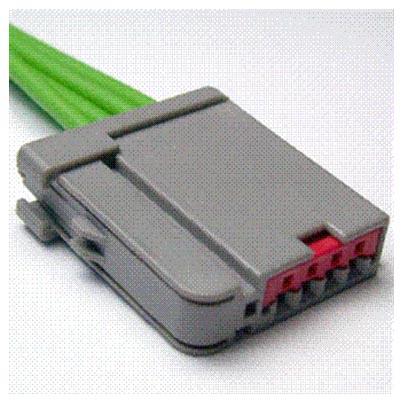

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1239 | Service Part Number: CU2Z-14S411-AA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses
|
