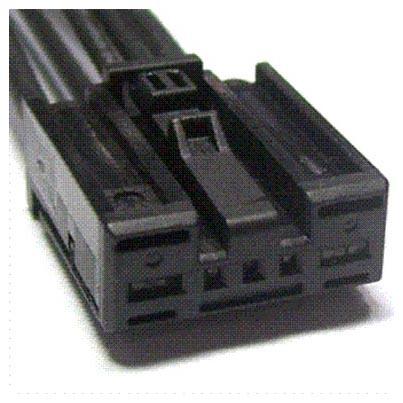

Driver Seat Rear Height Motor Connector End View (C363)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

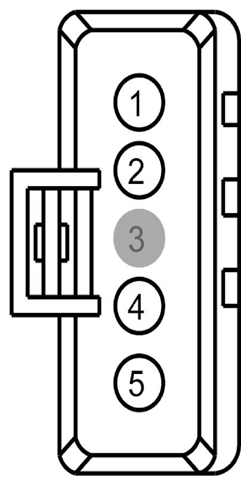

| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS05 (BU-WH) | 16 | CTRL MOD. - DRIVER SEAT REAR HEIGHT UP | memory |
| 1 | CPS27 (BU-BN) | 16 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT UP | w/o memory |
| 2 | RPS13 (GN-OG) | 22 | CTRL MOD. - DRIVER SEAT SENSORS POSITION | memory |
| 3 | * | * | Not Used | |
| 4 | VPS11 (GN-BN) | 22 | SENSOR - DRIVER SEAT REAR TILT | memory |
| 5 | CPS04 (YE-OG) | 16 | CTRL MOD. - DRIVER SEAT REAR HEIGHT DOWN | memory |
| 5 | CPS26 (YE-BU) | 16 | SWITCH - SEAT ADJUST. DRIVER REAR HEIGHT DOWN | w/o memory |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1071 | Service Part Number: AU2Z-14S411-PA Gauge: 14 18 Pin material: Tin (greased) Cavities: 5 Vehicle Uses
|
