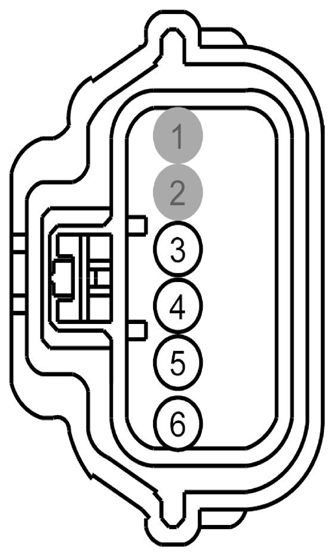

Door Latch, Right Front Connector End View (C609)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CPL52 (VT-GY) | 18 | CTRL MOD. - DOOR LOCK # PASSENGER DOORS UNLOCK (ALL EXCLUDING DRIVER) | |
| 4 | CPL11 (GY-BN) | 18 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 5 | CPL31 (WH) | 20 | SWITCH - LATCH RIGHT FRONT # AJAR | |
| 6 | GD139 (BK-YE) | 20 | GROUND - HEADLAMP PANEL LEFT # 2ND STUD |

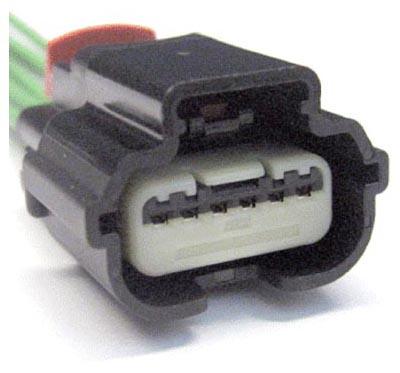

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1338 | Service Part Number: 9U2Z-14S411-BB Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses
|
| Pigtail Kit Part Number WPT-929 | Service Part Number: 9U2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
