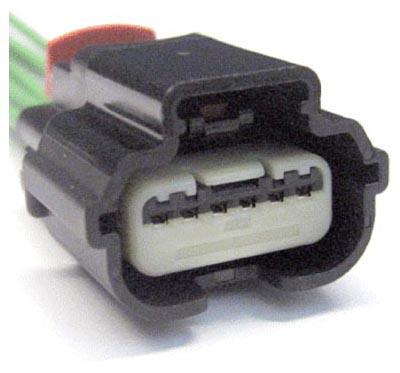

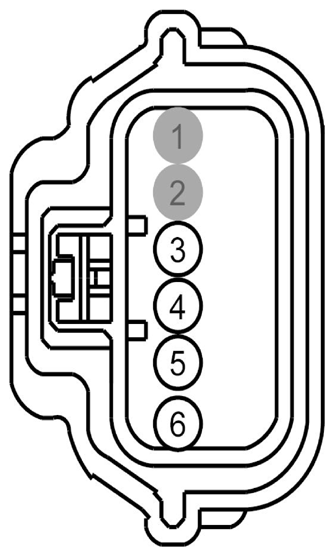

Door Latch, Left Front Connector End View (C525)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CPL51 (BU-GN) | 18 | CTRL MOD. - DOOR LOCK # DRIVER UNLOCK | |
| 4 | CPL11 (GY-BN) | 18 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 5 | CPL26 (GN-VT) | 20 | SWITCH - LATCH LEFT FRONT # AJAR | |
| 6 | GD139 (BK-VT) | 20 | GROUND - PILLAR A RIGHT # 2ND STUD | Regular Cab |
| 6 | GD134 (BK-VT) | 20 | GROUND - PILLAR A LEFT # 2ND STUD | Super Crew, Super Cab |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1338 | Service Part Number: 9U2Z-14S411-BB Gauge: 20 Pin material: Silver Cavities: 6 Vehicle Uses
|
| Pigtail Kit Part Number WPT-929 | Service Part Number: 9U2Z-14S411-BA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses
|
