Door Ajar Switch, Right Rear Connector End View (C820)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

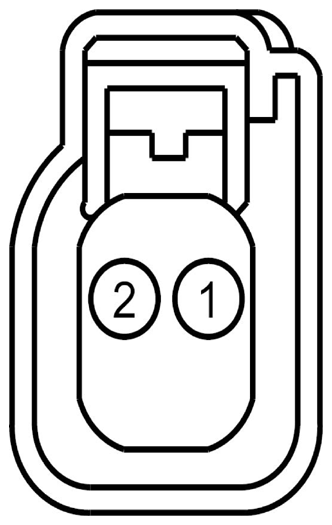

Fig 1: Door Ajar Switch, Right Rear Connector End View (C820)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD139 (BK-YE)	20	GROUND - PILLAR A RIGHT # 2ND STUD
2	CPL39 (YE)	20	SWITCH - LATCH REAR PASSENGER SIDE # AJAR (INCL.SLIDING DOOR)

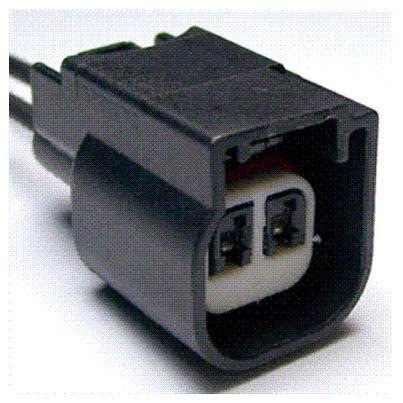

Available Pigtail Kits
Pigtail Kit Part Number WPT-1243	Service Part Number: 3U2Z-14S411-RPC Gauge: 16 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Rear Handle - Decklid Lamp - Headlamp - High/Low Beam Lamp - Headlamp - Low Beam Lamp - License Lamp - Rear Turn Lamp - Side Marker Sensor - Knock Sensor - Seat Track Position Sensor - Throttle Position Sensor - Turbine Shaft Speed Sensor - Water in Fuel Switch - Deck Lid/Lift Gate Ajar Switch - Door Ajar/Interior Lamp Switch - Hood Ajar Switch - Lift Gate Glass Ajar Switch - Stop Lamp Valve - Vapor Management

Available Pigtail Kits

Pigtail Kit Part Number WPT-1243

Service Part Number: 3U2Z-14S411-RPC
Gauge: 16
Pin material: Tin (greased)
Cavities: 2
Vehicle Uses

Actuator - Door Lock - LH - Rear
Actuator - Door Lock - RH - Rear
Handle - Decklid
Lamp - Headlamp - High/Low Beam
Lamp - Headlamp - Low Beam
Lamp - License
Lamp - Rear Turn
Lamp - Side Marker
Sensor - Knock
Sensor - Seat Track Position
Sensor - Throttle Position
Sensor - Turbine Shaft Speed
Sensor - Water in Fuel
Switch - Deck Lid/Lift Gate Ajar
Switch - Door Ajar/Interior Lamp
Switch - Hood Ajar
Switch - Lift Gate Glass Ajar
Switch - Stop Lamp
Valve - Vapor Management
