Defrost/Panel/Floor Mode Door Actuator Connector End View (C236)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

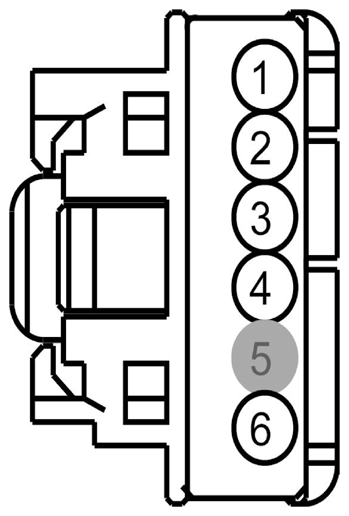

Fig 1: Defrost / Panel / Floor Mode Door Actuator Connector End View (C236)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	CH229 (WH-BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 2/OPEN (IF PLUS)
2	RH111 (GY-BU)	22	CTRL MOD. - GENERIC VREF RETURN
3	LH111 (BN-WH)	22	CTRL MOD. - GENERIC VREF
4	VH436 (YE-VT)	22	SENSOR - DOOR POSITION DEFROST
5	*	*	Not Used
6	CH228 (YE-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1/CLOSE (IF PLUS)

Available Pigtail Kits
Pigtail Kit Part Number WPT-1249	Service Part Number: 3U2Z-14S411-BYAC Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Lamp - Dome Lamp - Storage Compartment - Cargo Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat Switch - Heater A/C Blower (Rear) Switch - Speed Control
Pigtail Kit Part Number WPT-956	Service Part Number: 3U2Z-14S411-BYAB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Motor - Heater A/C Mode Door Motor - Heater/AC Blend Door Motor - Heater/AC Inlet Door Switch - Hazard Warning Switch - Heated Seat - LH - Front Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Front Switch - Heated Seat - RH - Rear Switch - Heater A/C Blower (Rear)
