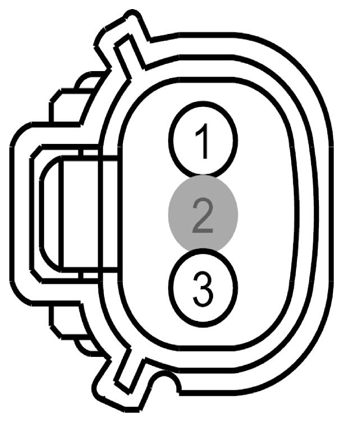

Coil On Plug (Cop) 6 Connector End View (C1606)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE308 (VT-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP6F) | 3.7L |
| 1 | CE308 (VT-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP6E) | 5.0L |
| 1 | CBK04 (VT) | 18 | FUSE - 78 OR CIRCUIT BREAKER | 6.2L |
| 2 | * | * | Not Used | |
| 3 | CBK04 (VT) | 16 | FUSE - 78 OR CIRCUIT BREAKER | 3.7L |
| 3 | CE308 (VT-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP6E) | 6.2L |
| 3 | CBK04 (VT) | 18 | FUSE - 78 OR CIRCUIT BREAKER | 5.0L |
| Available Pigtail Kits | |
|---|---|

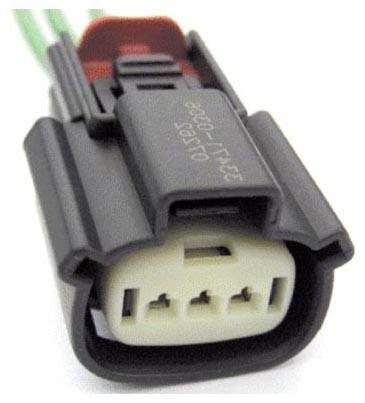

| Pigtail Kit Part Number WPT-931 | Service Part Number: 9U2Z-14S411-EA Gauge: 14 Pin material: Silver Cavities: 3 Vehicle Uses
|
