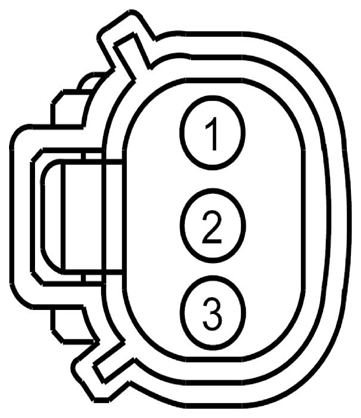

Coil On Plug (Cop) 2 Connector End View (C112)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD104 (BK-GN) | 16 | GROUND - CHASSIS/BATTERY | 3.5L |
| 2 | CE304 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2C) | 3.5L |
| 3 | CBK04 (VT) | 14 | FUSE - 78 OR CIRCUIT BREAKER | 3.5L |

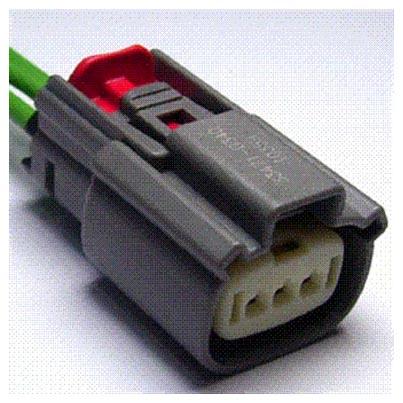

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1284 | Service Part Number: CU2Z-14S411-AFA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses
|
