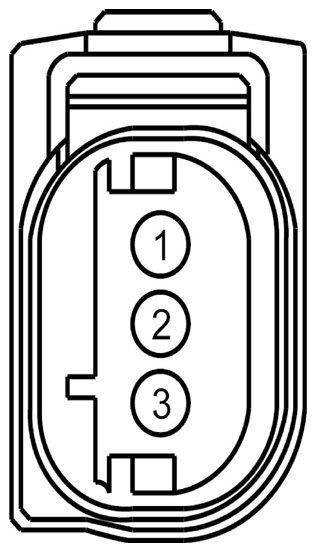

Camshaft Position Sensor 2 (CMP21) Connector End View (C1276)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE738 (YE-BU) | 20 | SENSOR - CAMSHAFT POSITION BANK 2 EX | 6.2L |
| 2 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | 6.2L |
| 3 | LE111 (VT-GN) | 20 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | 6.2L |
| Available Pigtail Kits | |
|---|---|

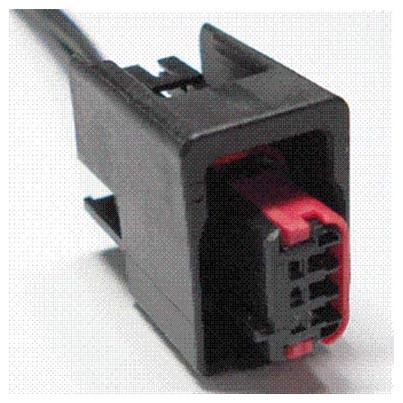

| Pigtail Kit Part Number WPT-1039 | Service Part Number: 9U2Z-14S411-AGA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
