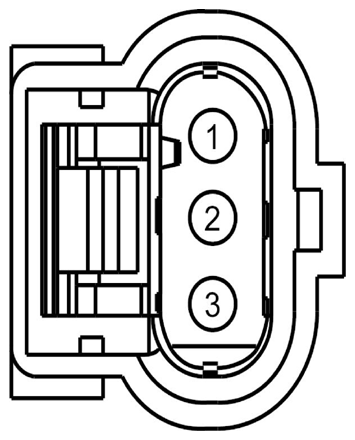

Camshaft Position 22 (CMP22) Sensor Connector End View (C1365)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LE144 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 + | 3.5L |
| 2 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | 3.5L |
| 3 | LE111 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | 3.5L |

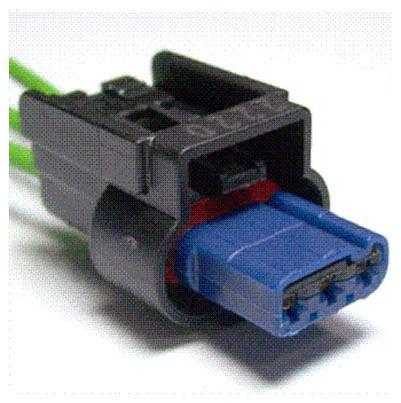

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1202 | Service Part Number: BU2Z-14S411-ARA Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses
|
